Part Number # GAF1650-10-11-70
SKU # 2393736
Image Disclaimers Message
GAF1650-10-11-70

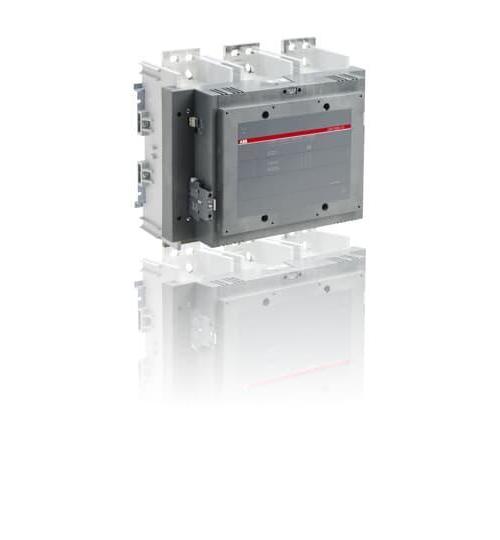

ABB GAF1650-10-11-70 AC/DC Operated IEC Contactor, 100 to 250 VAC/VDC V Coil, 1650 A, 1NO Contact, 3 Poles
Part Number # GAF1650-10-11-70
SKU # 2393736
$15766.48 / Each
Typical price:$29278.10 / Each
ABB GAF1650-10-11-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | GAF1650-10-11-70 |
| SKU #: | 2393736 |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 1NO |
| Dimensions: | 15.43 in H x 17.24 in W x 9.61 in D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 500000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated |
| Connection type: | Double |
| Country of origin: | SE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 07320500408810 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15766.48 / Each
Typical price:$29278.10 / Each
Quantity:
- ABB, GAF1650-10-11-70, IEC Contactor, AC/DC Operated, 100 to 250 V AC/DC Coil, 1650 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Double Connection, Screw Terminal, IP00/IP20 Enclosure, 500000 Cycles Operating Cycles, -40 to 70 deg C Operating, 15.43 in H x 17.24 in W x 9.61 in D Dimensions
GAF1650-10-11-70 Application
For controlling resistive or slightly inductive loads up to 1000 VDCGAF1650-10-11-70 Item Features
- These contactors are of the block type design with 3 main poles for connection in series by the user according to conductor cross-sectional area or by using LP connection bars to be ordered separately
- 1650 A at 600/1000 VDC UL/CSA
- Main poles arc chutes fitted with permanent magnets specially designed for DC breaking
- The connection polarities must be respected
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (100 to 250 VAC and DC), only 3 coils to cover control voltages between 48 to 250 V 50/60 Hz and 20 to 250 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
GAF1650-10-11-70 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2393736Part Number #GAF1650-10-11-70UNSPSC39121529UPC07320500408810
