Part Number # HF2.4-ROLE
SKU # 2465427
HF2.4-ROLE
ABB HF2.4-ROLE
Part Number # HF2.4-ROLE
SKU # 2465427
$413.01 / Each
Typical price:$695.98 / Each
ABB HF2.4-ROLE Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | HF2.4-ROLE |
| SKU #: | 2465427 |
| Action: | Reversing |
| Amperage Rating: | 2.4 A |
| Coil Voltage: | 24 V DC |
| Control Type: | Electronic |
| Dimensions: | 99 mm H x 22.5 mm W x 114.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000/30000000 Cycles |
| Operating Temperature: | -25 to 70 deg C |
| Overload Relay: | Class 10 Adjustable |
| Series: | HF |
| Setting: | 0.18 to 2.4 A |
| Type: | Compact Motor Combination |
| Wattage: | 1.1 to 3.3 W |
| Connection type: | Screw |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 04013614515521 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$413.01 / Each
Typical price:$695.98 / Each
Quantity:
- ABB, HF2.4-ROLE, Starters, Compact Motor Combination, Series: HF, 500 V AC, 2.4 A, 50/60 Hz Frequency, 1.1 to 3.3 W Wattage, 24 VDC Coil, 3 Pole, Setting: 0.18 to 2.4 A, Screw Connection, Reversing Action, Class 10 Adjustable Overload Relay, Electronic Control, IP20 Enclosure, Starting Modes: Direct-On-Line, 10000/30000000 Cycles Operating Cycles, -25 to 70 deg C Operating, 99 mm H x 22.5 mm W x 114.5 mm D Dimensions
HF2.4-ROLE Application
used for the direct-on-line start of motors and the switching of non-resistive loadsHF2.4-ROLE Item Features
- The HF-ROLE-range is our safety range with emergency stop function
- Used for the direct-on-line start of motors and the switching of non-resistive loads
- With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults
HF2.4-ROLE Standards
IEC 61508-1|ISO 13849-1|ATEX certified|PROP65SKU #2465427Part Number #HF2.4-ROLEUNSPSC39121521UPC04013614515521

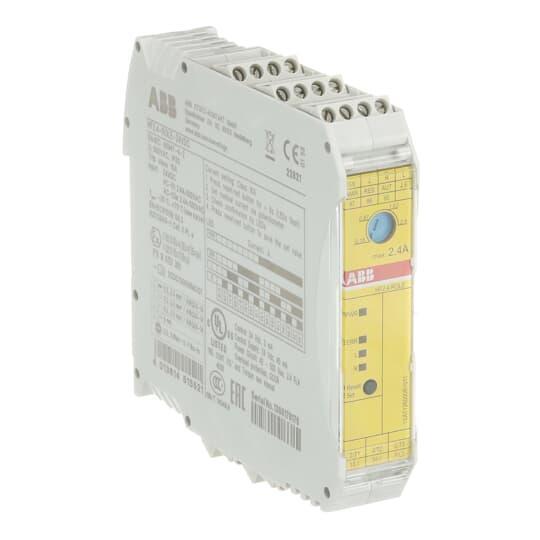

Image provided may only be a representation of final product and may include optional equipment
