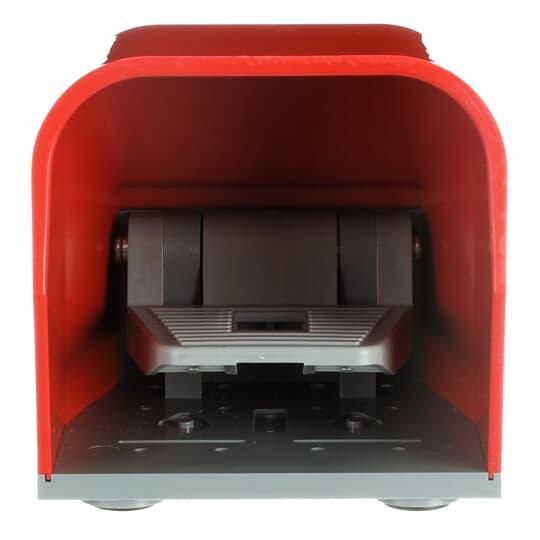

ABB IPSR1A11 Foot Switch
ABB IPSR1A11 Foot Switch
Part #:IPSR1A11
SKU #: 361897
Key Features
Part #:IPSR1A11
SKU #: 361897
Brand: ABB
Action: Snap
Actuator: Pedal
Amperage Rating: 1.8/3/3.1/5.5/10, 1.8/3/3.1/5.5/10 A
Color: Gray
Contact Configuration: 1NC-1NO, 1NO-1NC
- Free movement, contact position follows pedal movement actuated when the pedal is pushed down, released when pedal is in a state of rest
- 5.5 A at 130 VAC, 3.1 A at 230 VAC, 3 A at 240 VAC, 10 A at 24 VAC, 1.8 A at 400 VAC rated AC current and 0.6/66 A at 110 VAC, 2.8/67.2 A at 24 VDC, 0.27/67.5 A at 250 VDC rated DC current
ABB IPSR1A11 Foot Switch
ABB Foot Switch, Series: IPS, 500 VAC, 1.8/3/3.1/5.5/10 A, 50/60 Hz Frequency, 1NC-1NO Contact Configuration, 25 mOhm Closed Contact Resistance, Snap Action, Pedal Actuator, Class II/Double jagga Insulation, IP65 Enclosure, 30 Millions Operating Cycles, Alloyed Polycarbonate/ABS, Gray, Environmental Conditions: -10 to 70 deg C, 138 mm H x 140 mm W x 280 mm D Dimensions
Additional Description: ABB -IPSR1A11 (N) FT SW RED CVR FREE MOVEMENT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Foot switch snap action contacts. Grey base and red cover. Free movement. Rated impulse withstand voltage 6kV. 1 auxiliary contact NC and 1 auxiliary contact NO.
