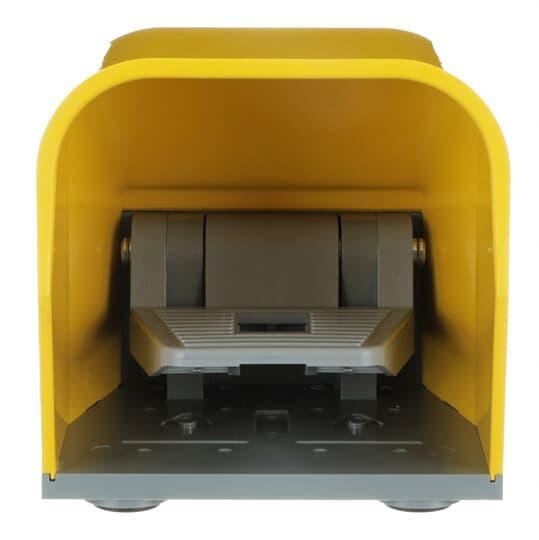

ABB IPSY1A11 Foot Switch
Part Number # IPSY1A11
SKU # 2183458
$143.10 / Each
ABB IPSY1A11 Key Features
Brand: ABB
Part Number # IPSY1A11
SKU #2183458
Action: Snap
Actuator: Pedal
Amperage Rating: 1.8/3/3.1/5.5/10, 1.8/3/3.1/5.5/10 A
Contact Configuration: 1NC-1NO, 1NO-1NC
Dimensions: 138 mm H x 140 mm W x 280 mm D
Enclosure: IP65
Environmental Conditions: -10 to 70, -10 to 70 deg C
Frequency Rating: 50/60, 50/60 Hz
Insulation: Class II/Double Insulation
Operating Cycles: 30 Million
Series: IPS
Voltage Rating: 500, 500 VAC
Color: Gray
Country of origin: IT
Material: Alloyed Polycarbonate/ABS
Manufacturer Name: ABB
UNSPSC: 39122222
UPC: 03471522009685
$143.10 / Each
- ABB Foot Switch, Series: IPS, 500 VAC, 1.8/3/3.1/5.5/10 A, 50/60 Hz Frequency, 1NC-1NO Contact Configuration, 25 mOhm Closed Contact Resistance, Snap Action, Pedal Actuator, Class II/Double Insulation Insulation, IP65 Enclosure, 30 Million Operating Cycles, Alloyed Polycarbonate/ABS, Gray, Environmental Conditions: -10 to 70 deg C, 138 mm H x 140 mm W x 280 mm D Dimensions
IPSY1A11 Application
Shearing Machines, Folding Machines, Spinning Lathes, Machine Tools, Wrapping Machines and Riveting PressesIPSY1A11 Item Features
- Free movement, contact position follows pedal movement actuated when the pedal is pushed down, released when pedal is in a state of rest
- 5.5 A at 130 VAC, 3.1 A at 230 VAC, 3 A at 240 VAC, 10 A at 24 VAC, 1.8 A at 400 VAC rated AC current and 0.6/66 A at 110 VAC, 2.8/67.2 A at 24 VDC, 0.27/67.5 A at 250 VDC rated DC current
IPSY1A11 Standards
IEC 60947-1|IEC 60947-5-1|EN 50 005|EN 50 013|EN 60947-1|EN 60947-5-1|UL 508|CSA C22-2 No. 14|UL94 V-0 Flammability RatingSKU #2183458Part Number #IPSY1A11UNSPSC39122222UPC03471522009685
