K6-22Z-84

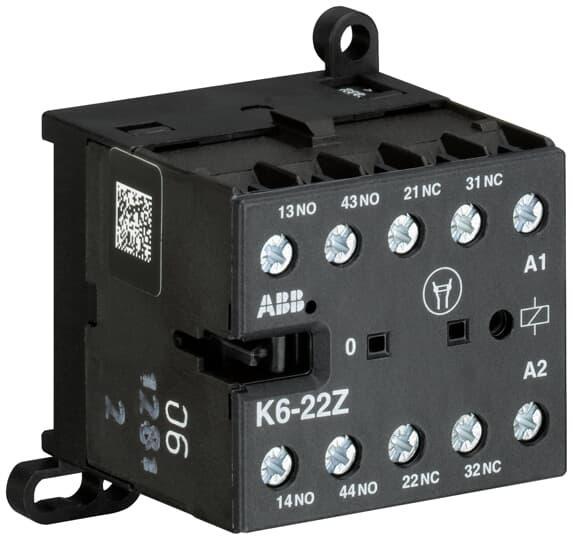

ABB K6-22Z-84 Mini Contactor Relay
Part Number # K6-22Z-84
SKU # 2206469
$525.10 / 10Each
Typical price:$627.50 / Each
ABB K6-22Z-84 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | K6-22Z-84 |
| SKU #: | 2206469 |
| Amperage Rating: | 5, 5 A |
| Coil Voltage: | 110 to 127, 110 to 127 V AC, 110 to 127 VAC |
| Contact Form: | 2NO-2NC, 2NO-2NC 2 Form C |
| Contact Rating: | 4 A at 24 V AC, 4 A at 24 VAC |
| Dimensions: | 2.07 in W x 1.84 in D x 2.26 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 4 |
| Series: | K6 |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Terminal Type: | Screw |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614151309 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$525.10 / 10Each
Typical price:$627.50 / Each
Quantity:
- ABB Mini Contactor Relay, Series: K6, 5 A, 50/60 Hz, 110 to 127 VAC Coil, 2NO-2NC 2 Form C, 4 A at 24 V AC Contact, 4 Pole, DIN Rail Mount, Screw Terminal, IP20 Enclosure, -25 to 55 deg C, 2.07 in W x 1.84 in D x 2.26 in H
K6-22Z-84 Application
For compact pilot duty applications up to 10 AK6-22Z-84 Item Features
- 4 poles with various contact combinations
- Control circuit - DC operated, low coil consumption (3.5 W at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front or side mounting
- 0.7 A At 110 VDC, 0.4 A at 220/240 VDC, 2.5 A at 24 VDC rated operational current DC-13
- 4 A at 120 VAC, 4 A at 220/240 VAC, 4 A at 240 VAC, 4 A at 24 VAC, 3 A at 380/400 VAC, 2 A at 500 VAC rated operational current AC-15
- 5 A at 600 VAC
K6-22Z-84 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2206469Part Number #K6-22Z-84UNSPSC39121529UPC04013614151309
