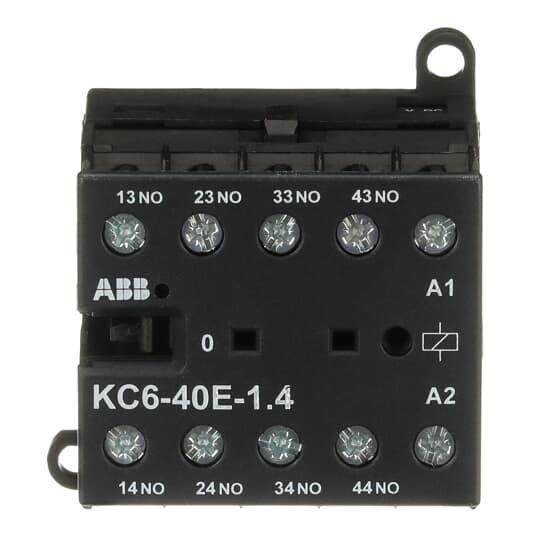

ABB KC6-40E-1.4 Interface Relay

2200563 MFG #: KC6-40E-1.4
$373.00 / EA
Usually Ships within 5-8 Days
  • Coil Voltage: 24
  • Contact Form: 4NO
  • Contact Rating: 4 A at 24 VAC
  • Dimensions: 2.07 in W x 1.84 in D x 2.26 in H
  • Enclosure Type: IP20
  • Number of Poles: 4
  • Power Rating: 1.4
  • Series: KC6
  • Temperature Rating (Degrees F): -25 to 55
  • Terminal Type: Screw
  • Mounting type: Rail

ABB KC6-40E-1.4 Interface Relay

ABB Interface Relay, Series: KC6, 1.4 W, 24 VDC Coil, 4NO, 4 A at 24 VAC Contact, 4 Pole, Rail Mount, Screw Terminal, IP20 Enclosure, -25 to 55 deg C, 2.07 in W x 1.84 in D x 2.26 in H

Additional Description: ABB -KC6-40E-1.4 INTERFACE RELAY,4NO,24VDC NON-CANCELABLE, NON-RETURNABLE

Catalog Description: The KC6-40E mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil and a a switch position indication.

  • Specifications
  • DC operated, low coil consumption control circuit (1.4 to 2.8 W at pull-in and at holding)
  • 0.7 A At 110 VDC, 0.4 A at 220/240 VDC, 2.5 A at 24 VDC rated operational current DC-13
  • 4 A at 120 VAC, 4 A at 220/240 VAC, 4 A at 240 VAC, 4 A at 24 VAC, 3 A at 380/400 VAC, 440 A at 440 VAC, 2 A at 480/500 VAC rated operational current AC-15
