Part Number # KC6-40E-2.4
SKU # 2274979

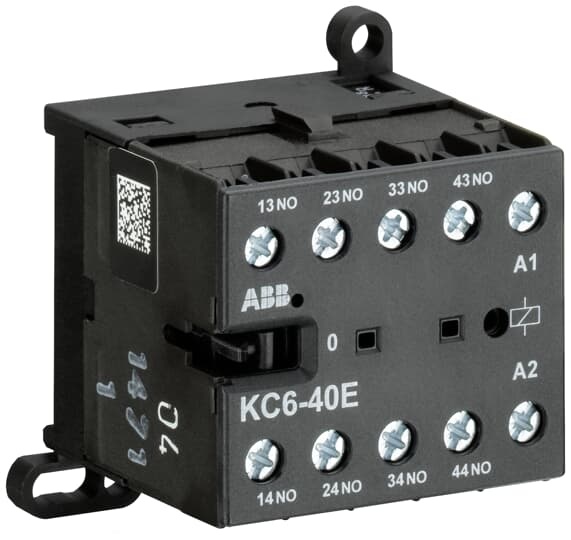

Image provided may only be a representation of
final product and may include optional equipment
KC6-40E-2.4
ABB KC6-40E-2.4 Interface Relay
Part Number # KC6-40E-2.4
SKU # 2274979
ABB KC6-40E-2.4 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | KC6-40E-2.4 |
| SKU #: | 2274979 |
| Coil Voltage: | 17 to 32, 17 to 32 V DC, 17 to 32 VDC |
| Contact Form: | 4NO, 4NO 4 Form A |
| Contact Rating: | 4 A at 24 V AC, 4 A at 24 VAC |
| Dimensions: | 52.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Number of Poles: | 4 |
| Series: | KC6 |
| Temperature Rating (Degrees F): | -25 to 55, -25 to 55 deg C |
| Terminal Type: | Screw |
| Country of origin: | DE |
| Mounting type: | Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614049958 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB KC6-40E-2.4 Interface Relay
Brand: ABB
Part Number: KC6-40E-2.4
ABB Interface Relay, Series: KC6, 2.4 W, 17 to 32 VDC Coil, 4NO, 4 A at 24 VAC Contact, 4 Pole, Rail Mount, Screw Terminal, IP20 Enclosure, -25 to 55 deg C, 52.5 mm W x 46.5 mm D x 57.5 mm H
Additional Description: ABB -KC6-40E-2.4 INTERFACE RELAY,4NO 17.32VDC 2.4W
Catalog Description: The KC6-40E mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil and a a switch position indication.
KC6-40E-2.4 Item Features
- 0.7 A At 110 VDC, 0.4 A at 220/240 VDC, 2.5 A at 24 VDC rated operational current DC-13
- 4 A at 120 VAC, 4 A at 220/240 VAC, 4 A at 240 VAC, 4 A at 24 VAC, 3 A at 380/400 VAC, 440 A at 440 VAC, 2 A at 480/500 VAC rated operational current AC-15
KC6-40E-2.4 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2274979Part Number #KC6-40E-2.4UNSPSC39121529UPC04013614049958
