- 0.55 A at 125 V, 2.8 A at 24 V, 0.27 A at 250 V rated operational current DC-13
- (2) Mounting holes at the top
Specifications
Brand: ABB
Action: Zb Snap
Actuator: Plain Plunger
Connection type: 1 m Cable
Contact Configuration: 1NC-1NO, 1NO-1NC
Contact Rating: 10 A at 24 V
Enclosure Type: IP67
Material: Zinc Alloy
Operating Cycles: 10000000, 10000000 Cycles
Operating Temperature: -25 to 70, -25 to 70 deg C
Series: Compact
Size: 30 mm W x 16 mm D x 60 mm H
UNSPSC: 39122213
UPC: 03471522637031

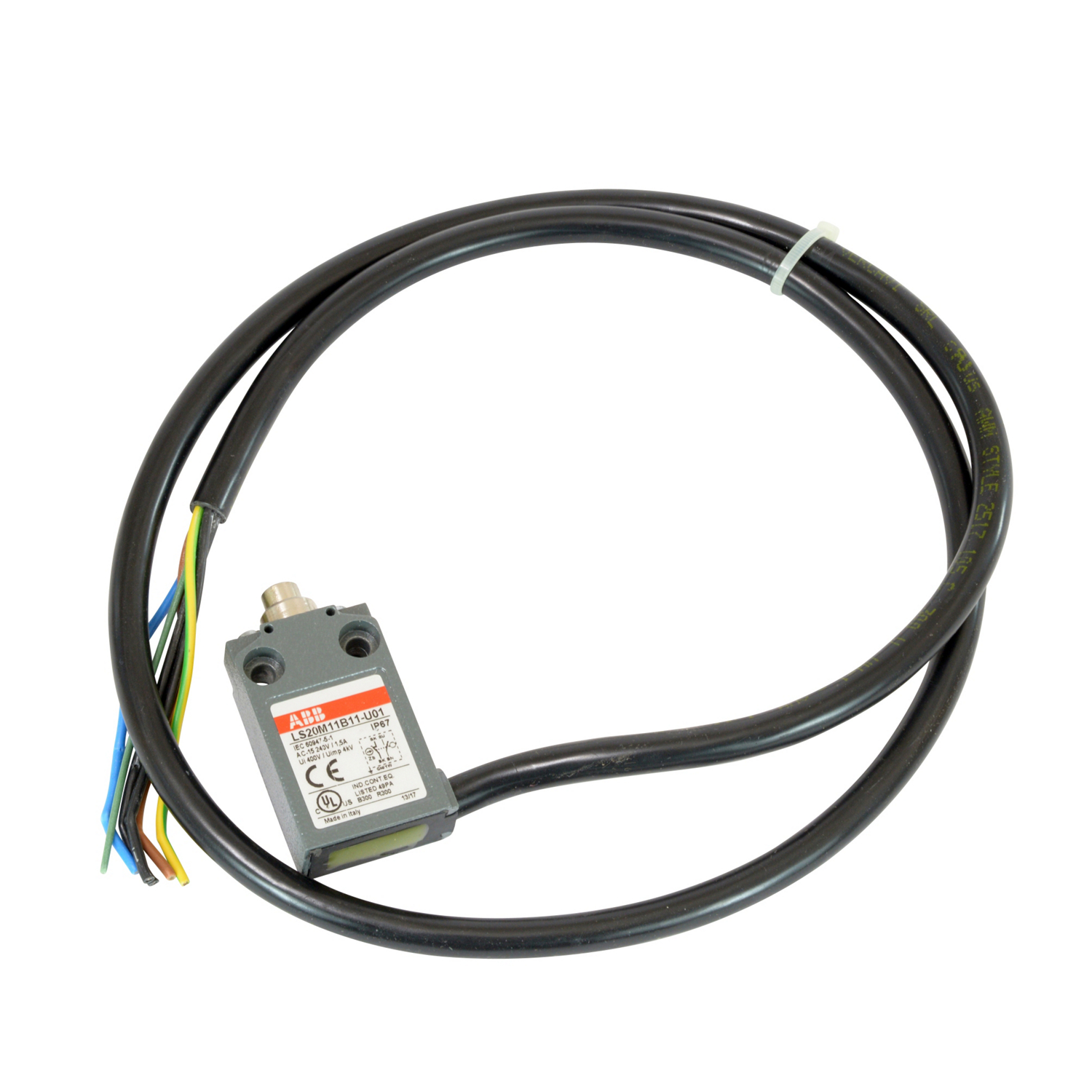

ABB LS20M11B11-U01 Limit Switch
ABB Limit Switch, Series: Compact, 1NC-1NO Contact Configuration, 10 A at 24 V Contact, ZB Snap Action, Plain Plunger Actuator, 1 m Cable Connection, IP67 Enclosure, 30 mm W x 16 mm D x 60 mm H Size, 10000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Zinc Alloy
Additional Description: ABB -LS20M11B11-U01 (N) LMT SW MIN 30MM MTL PLNGR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 30 mm metal prewired miniature limit switch with plunger actuator including 1 m cable
Item Features
