Part Number # LS21P51B11-U01
SKU # 2435014
ABB LS21P51B11-U01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | LS21P51B11-U01 |
| SKU #: | 2435014 |
| Amperage Rating: | 0.1/0.22/1.1/1.5/3/5 A |
| Connection type: | 1 m PVC Cable |
| Enclosure Type: | NEMA 1/IP67 |
| Environmental Conditions: | -40 to 70 deg C Storage |
| Operating Cycles: | 3600 Cycles/hr |
| Size: | 30 mm W |
| Type: | Miniature Prewired |
| UNSPSC: | 39122213 |
| UPC: | 03471522641793 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB LS21P51B11-U01
Brand: ABB
Part Number: LS21P51B11-U01
ABB Limit Switch, Miniature Prewired, Series: LS Series, 24/120/240 VAC, 24/125/240 VDC, 0.1/0.22/1.1/1.5/3/5 A, 50/60 Hz Frequency, 1NC-1NO Contact Configuration, 25 mOhm Closed Contact Resistance, Snap Action, Roller Lever Actuator, 1 m PVC Cable Connection, Class II Insulation, NEMA 1/IP67 Enclosure, Threaded Mounting, 30 mm W Size, 3600 Cycles/hr Operating Cycles, -25 to 70 deg C Operating, Plastic, Environmental Conditions: -40 to 70 deg C Storage
Additional Description: ABB -LS21P51B11-U01 (N) LMT SW MIN 30MM ADJ PLSTC RLRL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: _ Lmt Sw Min 30mm Adj Plstc Rlrl
LS21P51B11-U01 Application
For presence/absence, positioning and travel limit, objects passing/counting mechanical applicationsLS21P51B11-U01 Item Features
- Visible operation
- Able to switch strong currents (5 A conventional thermal current)
- Electrically separated contacts (Zb shape)
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
- 5 A at 24 VAC, 3 A at 120 VAC, 1.5 A at 240 VAC at AC-15, 1.1 A at 24 VDC, 0.22 A at 125 VDC, 0.1 A at 250 VDC at DC-13
LS21P51B11-U01 Standards
UL 508|CSA C22.2 No. 14|IEC 60947-1|IEC 60947-5-1|EN 60947-1|EN 60947-5-1SKU #2435014Part Number #LS21P51B11-U01UNSPSC39122213UPC03471522641793

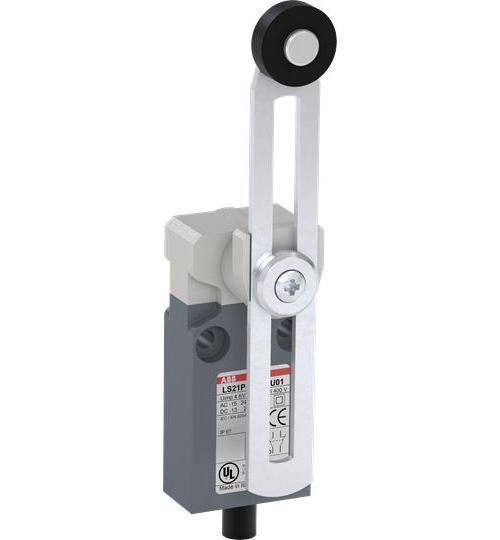

Image provided may only be a representation of final product and may include optional equipment
