Part Number # LS45M51B11
SKU # 2391793
Image Disclaimers Message
Brand: ABB
LS45M51B11

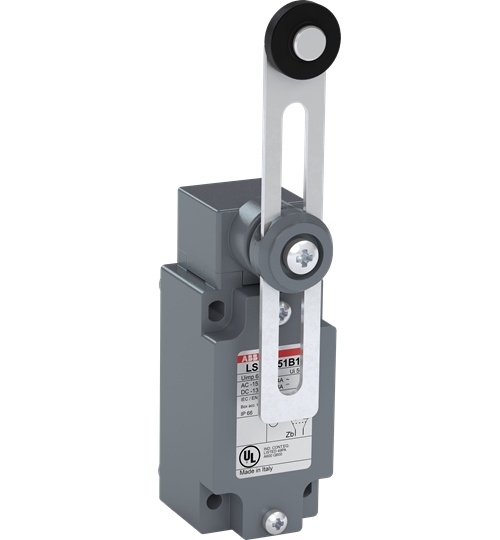

ABB LS45M51B11 Limit Switch
Part Number # LS45M51B11
SKU # 2391793
$998.80 / 10Each
Typical price:$1000.00 / Each
ABB LS45M51B11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | LS45M51B11 |
| SKU #: | 2391793 |
| Action: | Snap |
| Actuator: | Adjustable Roller Lever |
| Amperage Rating: | 0.4/0.55/0.6/3/3.1/4/5.5/6/10 A |
| Connection type: | Screw |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Country of origin: | IT |
| Enclosure Type: | NEMA 4X/IP66 |
| Environmental Conditions: | -30 to 80 deg C Storage |
| Frequency Rating: | 50/60 Hz |
| Material: | Zinc Alloy |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -25 to 70 deg C |
| Series: | LS Series |
| Size: | 40 mm W |
| Type: | Standard |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122213 |
| UPC: | 03471522613912 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$998.80 / 10Each
Typical price:$1000.00 / Each
Quantity:
- ABB, LS45M51B11, Limit Switch, Standard, Series: LS Series, 24 to 130 to 230 to 240 to 400 V AC/24 to 110 to 125 to 250 V DC, 0.4/0.55/0.6/3/3.1/4/5.5/6/10 A, 50/60 Hz Frequency, 1NO-1NC Contact Configuration, 25 mOhm Closed Contact Resistance, Snap Action, Adjustable Roller Lever Actuator, Screw Connection, Class I Insulation, NEMA 4X/IP66 Enclosure, 40 mm W Size, 3600 Cycles/hr Operating Cycles, -25 to 70 deg C Operating, Zinc Alloy, Environmental Conditions: -30 to 80 deg C Storage
LS45M51B11 Application
For switching strong currentsLS45M51B11 Item Features
- Visible operation
- Immune to electromagnetic disturbances
- 10 A at 24 VAC, 5.5 A at 130 VAC, 3.1 A at 230 VAC, 3 A at 240 VAC, 1.8 A at 400 VAC
- Easy to use
- Electrically separated contacts
- 2.8 A at 24 VDC, 0.6 A at 110 VDC, 0.27 A at 250 VDC
- Precise operating points (consistency)
LS45M51B11 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2391793Part Number #LS45M51B11UNSPSC39122213UPC03471522613912
