Part Number # LS45M52B11
SKU # 2220028
Image Disclaimers Message
LS45M52B11

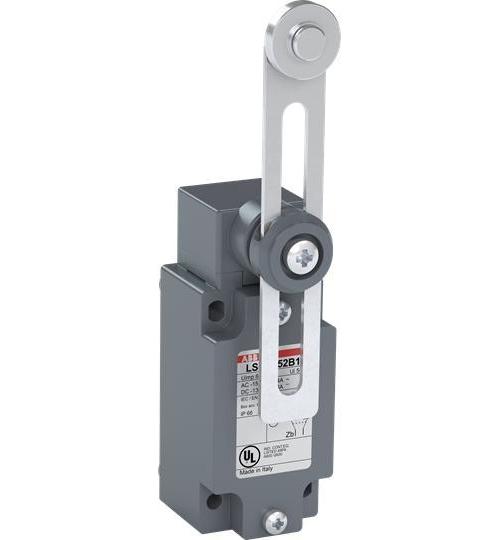

ABB LS45M52B11 Limit Switch
Part Number # LS45M52B11
SKU # 2220028
$1155.50 / 10Each
Typical price:$1156.90 / Each
ABB LS45M52B11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | LS45M52B11 |
| SKU #: | 2220028 |
| Action: | Snap |
| Actuator: | Roller Lever |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | 10 A at 24 V |
| Country of origin: | IT |
| Enclosure Type: | IP66 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Material: | Zinc Alloy |
| Operating Temperature: | -25 to 70, -25 to 70 deg C |
| Size: | 40 mm W x 60 mm D x 138 mm H |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122213 |
| UPC: | 03471522613974 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1155.50 / 10Each
Typical price:$1156.90 / Each
Quantity:
ABB LS45M52B11 Limit Switch
Brand: ABB
Part Number: LS45M52B11
ABB Limit Switch, 50/60 Hz Frequency, 1NC-1NO Contact Configuration, 10 A at 24 V Contact, Snap Action, Roller Lever Actuator, IP66 Enclosure, 40 mm W x 60 mm D x 138 mm H Size, -25 to 70 deg C Operating, Zinc Alloy
Additional Description: ABB -LS45M52B11 LMT SW 40MM ADJ 22MM SS RLR LV
Catalog Description: 40 mm metal limit switch with 22 mm diameter adjustable stainless steel roller lever actuator
LS45M52B11 Item Features
- LS45M52B11 is a 40 mm W, standard reinforced limit switch made of zinc alloy material (Zamak), with 4 mounting holes at the top and bottom, 1-1/2 in NPT cable entry on the bottom, adjustable steel roller lever (dia22 mm) actuator and 1NO + 1NC snap action (Zb type) contacts
- 3.1 A at 230 V, 3 A at 240 V, 4 A at 400 V, 5.5 A at 130 V, 10 A at 24 V rated operational current AC-15 and 0.55 A at 125 V, 6 A at 24 V, 0.4 A at 250 V, 0.6 A at 110 V rated operational current DC-13
LS45M52B11 Standards
CSA C22-2 N14|CE Certified|IEC 60947-1|IEC 60947-5-1|EN 60947-1|EN 60947-5-1|EU Directive 2011/65/EU|UL 508|UL Type 4XSKU #2220028Part Number #LS45M52B11UNSPSC39122213UPC03471522613974
