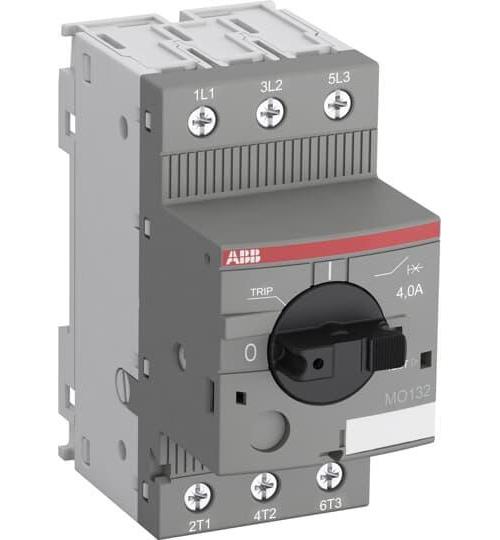

ABB MO132-10 Magnetic Manual Motor Starter, ON/OFF/Trip Action, 3 Poles, IP20 Enclosure
Part Number # MO132-10
SKU # 2432203
$187.03 / Each
Typical price:$223.52 / Each
ABB MO132-10 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | MO132-10 |
| SKU #: | 2432203 |
| Action: | On/Off/Trip |
| Amperage Rating: | 10 A |
| Dimensions: | 1.77 in W |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 7.6/8.5/9/9.6/10 A |
| Motor Power: | 3/4 hp, 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 50000/100000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 1/3 |
| Series: | MO132 |
| Setting: | 6.3 to 10 A |
| Type: | Magnetic |
| Wattage: | 4 kW |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 04013614400254 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$187.03 / Each
Typical price:$223.52 / Each
Quantity:
- ABB Manual Motor Starter, Magnetic, Series: MO132, 690 VAC, 250 VDC, 10 A, 50/60 Hz Frequency, 4 kW Wattage, 3/4 hp, 1-1/2 hp, 3 hp, 5 hp, 7-1/2 hp Motor, 3 Pole, Setting: 6.3 to 10 A, 1/3 ph, Screw Connection, ON/OFF/Trip Action, 7.6/8.5/9/9.6/10 A Full Load, IP20 Enclosure, 50000/100000 Cycles Operating Cycles, -25 to 60 deg C Operating, 1.77 in W Dimensions
MO132-10 Item Features
- Short-circuit protection
- Disconnect function
- Suitable for three and single-phase applications
- Trip-free mechanism
- Clear switch position indication On-Off/trip
- Lockable handle
- 50000 mechanical, 100000 electrical cycles
- 1-1/2 hp at 220 to 240 VAC 1 phase, 3 hp at 440 to 480 VAC 1 phase, 3/4 hp at 110 to 120 VAC 3 phase, 3 hp at 220 to 240 VAC 3 phase, 5 hp at 440 to 480 VAC 3 phase, 7-1/2 hp at 500 to 600 VAC 3 phase horsepower rating
- 10 A at 220 to 240 VAC 1 phase, 8.5 A at 440 to 480 VAC 1 phase, 10 A at 110 to 120 VAC 3 phase, 9.6 A at 220 to 240 VAC 3 phase, 7.6 A at 440 to 480 VAC 3 phase, 9 A at 500 to 600 VAC 3 phase full load current rating
MO132-10 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2432203Part Number #MO132-10UNSPSC39121521UPC04013614400254
