MO132-12

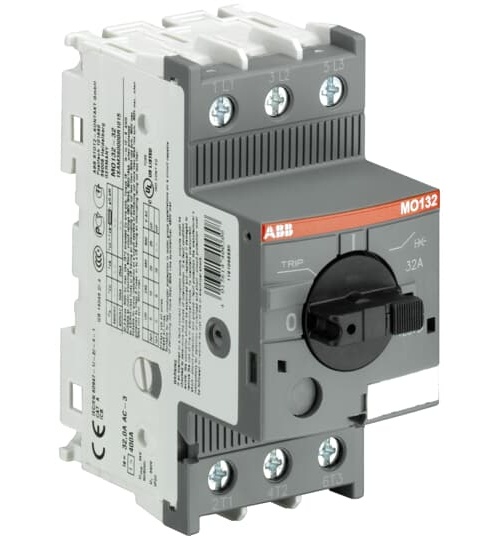

ABB MO132-12 Magnetic Manual Motor Starter, ON/OFF/Trip Action, 3 Poles, IP20 Enclosure
Part Number # MO132-12
SKU # 2428421
$203.42 / Each
Typical price:$243.12 / Each
ABB MO132-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | MO132-12 |
| SKU #: | 2428421 |
| Action: | On/Off/Trip |
| Amperage Rating: | 12 A |
| Dimensions: | 3.2 in L x 1.77 in W x 3.54 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 8.5/9.6/11/12 A |
| Motor Power: | 1-1/2 hp, 2 hp, 3 hp, 7-1/2 hp, 10 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 50000/100000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 1/3 |
| Series: | MO132 |
| Setting: | 8 to 12 A |
| Type: | Magnetic |
| Wattage: | 5.5 kW |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 04013614400278 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$203.42 / Each
Typical price:$243.12 / Each
Quantity:
- ABB, MO132-12, Manual Motor Starter, Magnetic, Series: MO132, 690 VAC, 250 VDC, 12 A, 50/60 Hz Frequency, 5.5 kW Wattage, 1-1/2 hp, 2 hp, 3 hp, 7-1/2 hp, 10 hp Motor, 3 Pole, Setting: 8 to 12 A, 1/3 ph, Screw Connection, ON/OFF/Trip Action, 8.5/9.6/11/12 A Full Load, IP20 Enclosure, 50000/100000 Cycles Operating Cycles, -25 to 60 deg C Operating, 3.2 in L x 1.77 in W x 3.54 in H Dimensions
MO132-12 Item Features
- Disconnect function
- 50000 mechanical, 100000 electrical cycles
- Trip-free mechanism
- Suitable for three and single-phase applications
- Clear switch position indication On-Off/trip
- Short-circuit protection
- Lockable handle
- 2 hp at 220 to 240 VAC 1 phase, 3 hp at 440 to 480 VAC 1 phase, 1-1/2 hp at 110 to 120 VAC 3 phase, 3 hp at 220 to 240 VAC 3 phase, 7-1/2 hp at 440 to 480 VAC 3 phase, 10 hp at 500 to 700 VAC 3 phase horsepower rating
MO132-12 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2428421Part Number #MO132-12UNSPSC39121521UPC04013614400278
