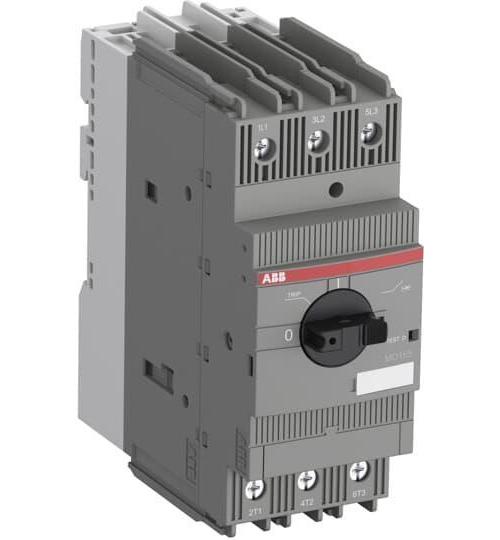

ABB MO165-16 Manual Motor Starter Magnetic Only
Part Number # MO165-16
SKU # 2350089
$329.34 / Each
ABB MO165-16 Key Features
Brand: ABB
Part Number # MO165-16
SKU #2350089
Action: On/Off/Trip
Amperage Rating: 16, 16 A
Control Type: Rotary Handle
Dimensions: 55 mm W x 122.1 mm D x 142.65 mm H
Enclosure Type: IP20/IP109
Frequency Rating: 50/60, 50/60 Hz
Full Load Current: 14, 14 A
Load Capacity: 100, 100 kA
Motor Power: 10, 10 hp
Number of Poles: 3
Operating Cycles: 25000/50000, 25000/50000 Cycles
Operating Temperature: -25 to 60, -25 to 60 deg C
Phase: 3
Series: MO165
Setting: 16, 16 A
Voltage Rating: 600, 600 VAC
Wattage: 7.5, 7.5 kW
Connection type: Screw
Country of origin: CN
Manufacturer Name: ABB
UNSPSC: 39122221
UPC: 04013614486128
$329.34 / Each
- ABB Manual Motor Starter Magnetic Only, Series: MO165, 600 VAC, 16 A, 50/60 Hz Frequency, 7.5 kW Wattage, 10 hp Motor, 3 Pole, Setting: 16 A, 100 kA Load, 3 ph, Screw Connection, ON/OFF/Trip Action, 14 A Full Load, Rotary Handle Control, IP20/IP109 Enclosure, 25000/50000 Cycles Operating Cycles, -25 to 60 deg C Operating, 55 mm W x 122.1 mm D x 142.65 mm H Dimensions
MO165-16 Application
For use to provide a disconnect function for safely isolation of the installation and the supply and can be used for the manual switching of loadsMO165-16 Item Features
- Short-circuit protection
- Disconnect function
- Trip-free mechanism
- 11 A at 200 VAC 3 ph, 10.6 A at 208 VAC 3 ph, 15.2 A at 220 to 240 VAC 3 ph, 14 A at 440 to 480 VAC 3 ph, 11 A at 550 to 600 VAC 3 ph
- 3 hp at 208 VAC 3 ph, 3 hp 220 to 240 VAC 3 ph, 5 hp 440 to 480 VAC 3 ph, 10 hp 550 to 600 VAC 3 ph
MO165-16 Standards
CSA 22.2 No. 14|IEC/EN 60947-1|IEC/EN 60947-2|IEC/EN 60947-4-1|UL 60947-4-1|EU Directive 2011/65/EU|ABS Certified|BV Certified|CB Certified|CCC Certified|CE Certified|DNV GL Certified|EAC Certified|LR Certified|RMRS Certified|cUL E137861|UL E137861|cUL E345003|UL 345003SKU #2350089Part Number #MO165-16UNSPSC39122221UPC04013614486128
