Part Number # MS116-16
SKU # 2173798
Image Disclaimers Message
MS116-16

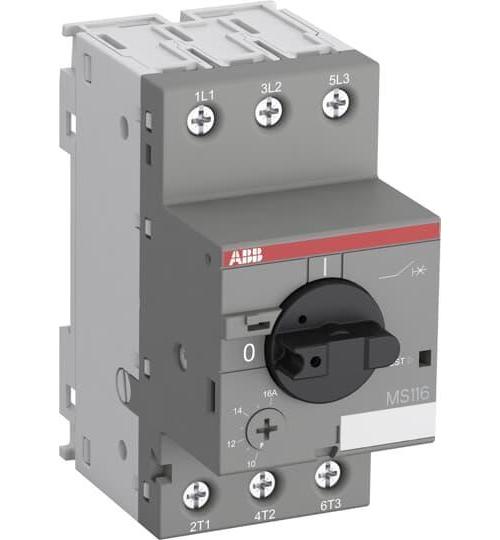

ABB MS116-16 Manual Motor Starter
Part Number # MS116-16
SKU # 2173798
$188.66 / Each
Typical price:$225.47 / Each
ABB MS116-16 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | MS116-16 |
| SKU #: | 2173798 |
| Action: | ON/OFF |
| Amperage Rating: | 16, 16 A |
| Control Type: | Rotary Handle |
| Dimensions: | 90 mm H x 45 mm W x 85.6 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Full Load Current: | 10 to 16, 10 to 16 A |
| Load Capacity: | 16 kA |
| Motor Power: | 5 hp, 10 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 100000, 100000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C, -25 to 70 deg C |
| Phase: | 3, 3 ph |
| Series: | MS116 |
| Setting: | 10 to 16 A |
| Type: | Type MS116 |
| Wattage: | 7.5, 7.5 kW |
| Connection type: | Thread |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 04013614320347 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.66 / Each
Typical price:$225.47 / Each
Quantity:
- ABB, MS116-16, Manual Motor Starter, Type MS116, Series: MS116, 690 V AC, 16 A, 50/60 Hz Frequency, 7.5 kW Wattage, 5 hp, 10 hp Motor, 3 Pole, Setting: 10 to 16 A, 16 kA Load, 3 ph, Thread Connection, ON/OFF Action, 10 to 16 A Full Load, Rotary Handle Control, IP20 Enclosure, 100000 Cycles Operating Cycles, -25 to 70 deg C Operating, 90 mm H x 45 mm W x 85.6 mm D Dimensions
MS116-16 Application
For use as a motor disconnect in single motor applications and group motor installationsMS116-16 Item Features
- Trip free handle mechanism
- Disconnect function
- 7.5 kW at 400 VAC rated operational power
- 5 hp at 220 to 240 VAC, 10 hp at 440 to 480/500 to 600 VAC power rating
- Manual motor protection saves cost, panel space and ensures quick and reliable short circuit protection by reacting within milliseconds
- Phase loss sensitivity
- Adjustable current setting for overload protection
MS116-16 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2173798Part Number #MS116-16UNSPSC39121521UPC04013614320347
