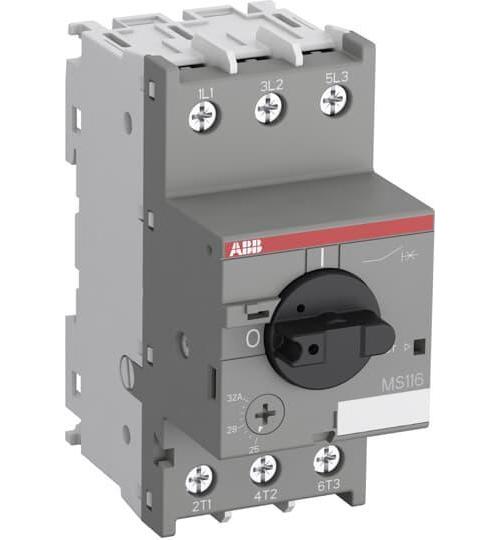

ABB MS116-25 Manual Motor Starter
Part Number # MS116-25
SKU # 2311552
ABB MS116-25 Key Features
ABB MS116-25 Manual Motor Starter
Brand: ABB
Part Number: MS116-25
ABB Manual Motor Starter, Series: MS116, 690 VAC, 25 A, 50/60 Hz Frequency, 12.5 kW Wattage, 7-1/2 hp, 15 hp, 20 hp Motor, 3 Pole, Setting: 20 to 25 A, 10 kA Load, 3 ph ph, Thread Connection, ON/OFF Action, 1NO-1NC Auxiliary, Rotary Handle Control, IP20 Enclosure, 100000 Cycles Operating Cycles, -25 to 70 deg C Operating, 97.8 mm H x 45 mm W x 86.55 mm D Dimensions
Additional Description: ABB -MS116-25 3P MMP 20.0-25.0A RANGE
Catalog Description: The MS116-20 manUAl motor starter is a compact 45 mm width devices with a rated operational current of ie = 20.0 a. this device is used to manUAlly switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manUAl motor starter offers a rated service short-circuit breaking capacity ics = 10 ka at 400 vac and the trip class 10a. further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manUAl motor starter is suitable for three- and single-phase applications. auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.
MS116-25 Application
Three, Single Phase, Motor Disconnect and Group Installation ApplicationsMS116-25 Item Features
- Phase loss sensitivity
- Disconnect function
- Adjustable current setting for overload protection
- Trip free handle mechanism
- 12.5 kW at 400 VAC rated operational power
- 7.5 hp at 220 to 240 VAC, 15 hp at 440 to 480 VAC, 20 hp at 500 to 600 VAC
MS116-25 Standards
cULus|UL 508|CSA 22.2 No. 14SKU #2311552Part Number #MS116-25UNSPSC39121521UPC04013614405662
