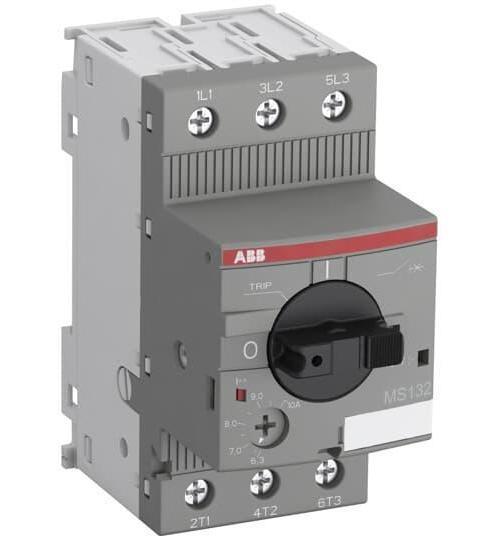

ABB MS132-2.5 Manual Motor Starter
Part Number # MS132-2.5
SKU # 2260381
$173.51 / Each
15 In Stock
Ships in 1 Business Day
ABB MS132-2.5 Key Features
Brand: ABB
Part Number # MS132-2.5
SKU #2260381
Action: On/Off/Trip
Amperage Rating: 1.6 to 2.5, 1.6 to 2.5 A
Control Type: Rotary Handle
Dimensions: 90 mm H x 45 mm W x 86.75 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
Full Load Current: 1.6 to 2.5 A
Load Capacity: 100, 100 kA
Motor Power: 1-1/2, 1-1/2 hp
Number of Poles: 3
Operating Cycles: 100000, 100000 Cycles
Operating Temperature: -25 to 70, -25 to 70 deg C
Phase: 3
Series: MS132
Setting: 1.6 to 2.5, 1.6 to 2.5 A
Type: Type MS132
Voltage Rating: 690 VAC/250 VDC
Wattage: 0.75, 0.75 kW
Connection type: Thread, Threaded
Country of origin: DE
Manufacturer Name: ABB
UNSPSC: 39121521
UPC: 04013614400070
$173.51 / Each
ABB MS132-2.5 Manual Motor Starter
Brand: ABB
Part Number: MS132-2.5
ABB Manual Motor Starter, Series: MS132, 690 VAC/250 VDC, 1.6 to 2.5 A, 50/60 Hz Frequency, 0.75 kW Wattage, 1-1/2 hp Motor, 3 Pole, Setting: 1.6 to 2.5 A, 100 kA Load, 3 ph, Thread Connection, ON/OFF/Trip Action, Rotary Handle Control, IP20 Enclosure, 100000 Cycles Operating Cycles, -25 to 70 deg C Operating, 90 mm H x 45 mm W x 86.75 mm D Dimensions
Additional Description: ABB -MS132-2.5 3P MMP 1.6-2.5A RANGE
Catalog Description: 3 pole, 1.6 to 2.5 amps, UL rated, MS132 manual motor protector
MS132-2.5 Application
For use as a motor disconnect in single motor, group motor installation, tap conductor protection, type E and F combination motor controllers applicationsMS132-2.5 Item Features
- Disconnect function
- Clear switch position indication on/off, trip
- 0.75 kW at 400 VAC rated operational power
- Manual motor protection saves cost, panel space and ensures quick and reliable short circuit protection by reacting within milliseconds
- Phase loss sensitivity
- Adjustable current setting for overload protection
MS132-2.5 Standards
cULus Listed|UL 508|CSA C22.2 No. 14|CE Certified|CCC Certified|BV Approved|CB Approved|ABS Approved|DNV Approved|GL Approved|UL 508|cULus Listed|CCC Certified|GOST-R|GOST-F|ABS, Lloyds|GL|DNV Listed|RINA|CE CertifiedSKU #2260381Part Number #MS132-2.5UNSPSC39121521UPC04013614400070
