Part Number # MS132-20-HKF1-11
SKU # 2392328

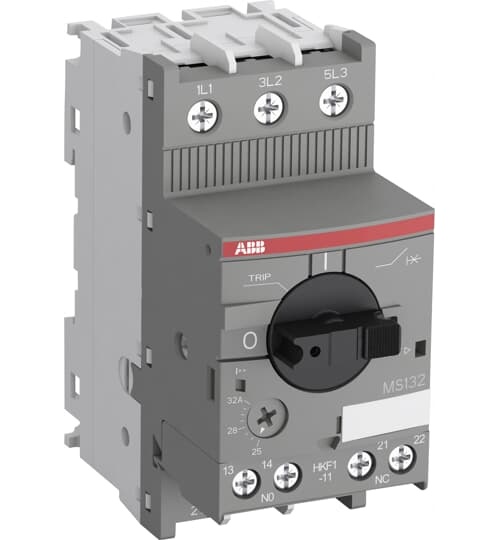

Image provided may only be a representation of
final product and may include optional equipment
MS132-20-HKF1-11
ABB MS132-20-HKF1-11 Manual Motor Starter
Part Number # MS132-20-HKF1-11
SKU # 2392328
$276.69 / Each
Typical price:$330.69 / Each
ABB MS132-20-HKF1-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | MS132-20-HKF1-11 |
| SKU #: | 2392328 |
| Action: | On/Off/Trip |
| Amperage Rating: | 20 A |
| Control Type: | Rotary Handle |
| Dimensions: | 3.85 in H x 1.77 in W |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 14/15.2/17/20 A |
| Motor Power: | 1-1/2 hp, 3 hp, 5 hp, 10 hp, 15 hp |
| Number of Poles: | 3 |
| Operating Cycles: | 50000/100000 Cycles |
| Operating Temperature: | -25 to 70 deg C |
| Phase: | 01-Mar, 1/3, 3-Jan |
| Series: | MS132 |
| Setting: | 16 to 20 A |
| Wattage: | 9 kW |
| Connection type: | Screw |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121521 |
| UPC: | 04013614404535 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$276.69 / Each
Typical price:$330.69 / Each
Quantity:
- ABB Manual Motor Starter, Series: MS132, 690 VAC, 250 VDC, 20 A, 50/60 Hz Frequency, 9 kW Wattage, 1-1/2 hp, 3 hp, 5 hp, 10 hp, 15 hp Motor, 3 Pole, Setting: 16 to 20 A, 1/3 ph, Screw Connection, ON/OFF/Trip Action, 14/15.2/17/20 A Full Load, Rotary Handle Control, IP20 Enclosure, 50000/100000 Cycles Operating Cycles, -25 to 70 deg C Operating, 3.85 in H x 1.77 in W Dimensions
MS132-20-HKF1-11 Item Features
- Manual control
- Disconnect function
- Handle can be locked in the off position
- Remote control via undervoltage release or shunt trip
- Trip indication
- Temperature compensation
- Adjustable current setting
- 100000 mechanical, 50000 electrical cycles
- 1-1/2 hp at 120 VAC 1 phase, 3 hp at 220 to 240 VAC 1 phase, 5 hp at 220 to 240 VAC 3 phase, 10 hp at 440 to 480 VAC 3 phase, 15 hp at 500 to 600 VAC 3 phase horsepower rating
- 20 A at 120 VAC 1 phase, 17 A at 220 to 240 VAC 1 phase, 15.2 A at 220 to 240 VAC 3 phase, 14 A at 440 to 480 VAC 3 phase, 17 A at 500 to 600 VAC 3 phase full load current rating
- 1NO-1NC auxiliary contact block
MS132-20-HKF1-11 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2392328Part Number #MS132-20-HKF1-11UNSPSC39121521UPC04013614404535
