Part Number # NF22E-14
SKU # 2450113
NF22E-14

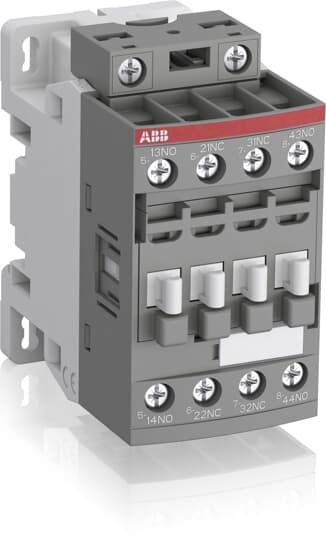

ABB NF22E-14
Part Number # NF22E-14
SKU # 2450113
ABB NF22E-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | NF22E-14 |
| SKU #: | 2450113 |
| Amperage Rating: | 0.13/0.27/2 A |
| Coil Voltage: | 250/500 V AC/DC, 250/500 VAC/VDC |
| Contact Form: | 2NO-2NC, 2NO-2NC 2 Form A/2 Form B |
| Dimensions: | 77 mm L x 45 mm W x 86 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Series: | NF Series |
| Temperature Rating (Degrees F): | -60 to 80 deg C |
| Terminal Type: | Screw |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523100145 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

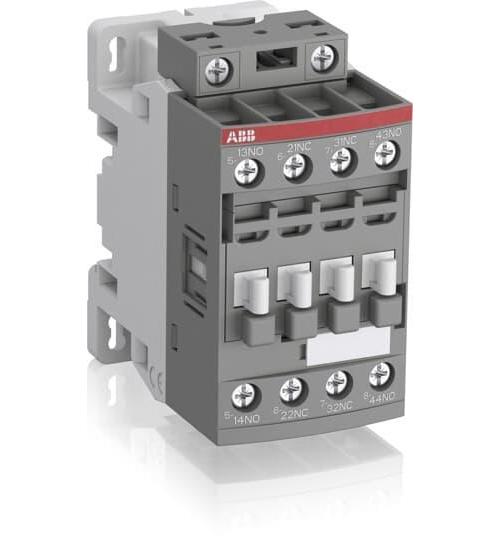

ABB NF22E-14
Brand: ABB
Part Number: NF22E-14
ABB Contactor Relay, Series: NF Series, 0.13/0.27/2 A, 65/68 W Power, 50/60 Hz Frequency, 250/500 VAC/VDC Coil, 2NO-2NC Contact Form, 4 Poles, Screw Terminal, IP20 Enclosure, -60 to 80 deg C, 77 mm L x 45 mm W x 86 mm H Dimensions
Additional Description: ABB -NF22E-14 RELAY,2NO,2NC,250-500V50/60HZ-DC
Catalog Description: NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. - Poles: 4-pole contactor relays (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.
NF22E-14 Application
For switching auxiliary and control circuitsNF22E-14 Item Features
- These control relays are of the block type design with - 4-pole control relays have mechanically linked auxiliary contact elements (side-marked symbol)
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
NF22E-14 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2450113Part Number #NF22E-14UNSPSC39121529UPC03471523100145
Image provided may only be a representation of final product and may include optional equipment
