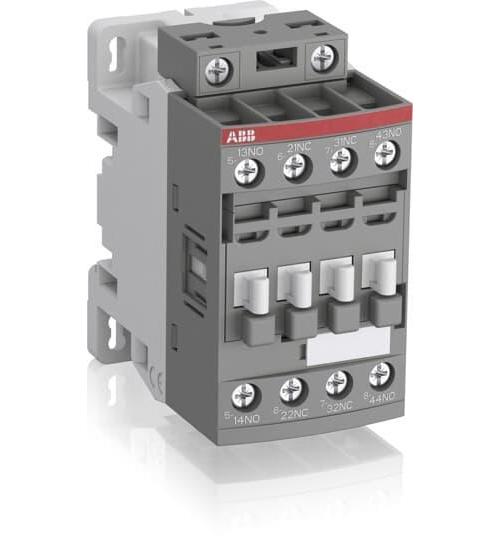

ABB NF31E-11 Contactor Relay
ABB NF31E-11 Contactor Relay
Part #:NF31E-11
SKU #: 2260192
Key Features
Part #:NF31E-11
SKU #: 2260192
Brand: ABB
Coil Voltage: 24 to 60 VAC/20 to 60 VDC
Contact Form: 3NO-1NC
Contact Rating: 6 A at 127 VAC
Dimensions: 1.77 in W x 3.03 in D x 3.15 in H
Enclosure Type: IP20
- Contactor relays have mechanically linked auxiliary contact elements
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range
- Can manage large control voltage variations
- Only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 6 A at 24 VDC, 2.8 A at 48 VDC, 1 A at 72 VDC, 0.55 A at 110 VDC, 0.55 A at 125 VDC, 0.27 A at 220 VDC, 0.27 A at 250 VDC, 0.15 A at 400 VDC, 0.13 A at 500 VDC, 0.1 A at 600 VDC rated operational current DC-13
- 6 A at 24 to 127 VAC, 4 A at 220 to 240 VAC, 3 A at 400 to 440 VAC, 2 A at 500 VAC, 2 A at 690 VAC rated operational current AC-15
ABB NF31E-11 Contactor Relay
ABB Contactor Relay, Series: NF Series, 50/60 Hz, 24 to 60 VAC/20 to 60 VDC Coil, 3NO-1NC, 6 A at 127 VAC Contact, 4 Pole, Rail Mount, Screw Terminal, IP20 Enclosure, -40 to 70 deg C, 1.77 in W x 3.03 in D x 3.15 in H
Additional Description: ABB -NF31E-11 RELAY,3NO,1NC,24-60V50/60HZ,20-6 POSITIVELY GUIDED, 3 NO, 1 NC, 24VDC
Catalog Description: NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. - Poles: 4-pole contactor relays (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available. Note: NF..E-11 not suitable for a direct control by PLC-output. NF..E-11 type available in some countries: please consult your ABB representative.
