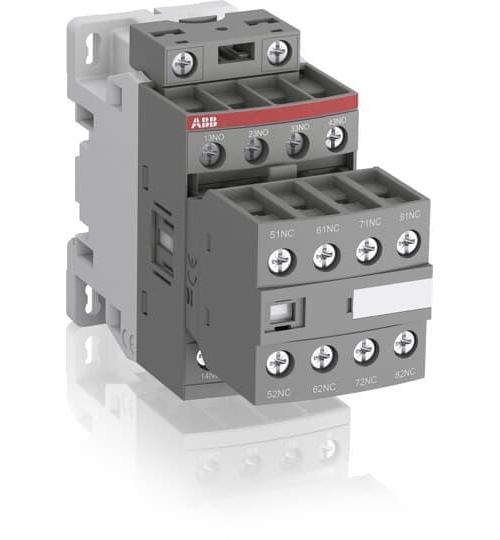

ABB NF44E-13 Contactor Relay
Part Number # NF44E-13
SKU # 2281916
ABB NF44E-13 Key Features
ABB NF44E-13 Contactor Relay
Brand: ABB
Part Number: NF44E-13
ABB Contactor Relay, Series: NF Series, 50/60 Hz, 100 to 250 VAC/VDC Coil, 4NO-4NC, 6 A at 127 VAC Contact, 8 Pole, Rail Mount, Screw Terminal, IP20 Enclosure, -40 to 70 deg C, 1.77 in W x 4.35 in D x 3.15 in H
Additional Description: ABB -NF44E-13 RELAY,4NO,4NC,100-250V50/60HZ-DC
Catalog Description: NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. - Poles: 8-pole contactor relays with a non-removable front-mounted auxiliary contact block (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.
NF44E-13 Application
For applications that require small control relays with 4 NO and 4 NC contactsNF44E-13 Item Features
- 8 poles with a permanently fixed 4-pole auxiliary contact block
- Contactor relays have mechanically linked auxiliary contact elements
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range
- Can manage large control voltage variations
- Only 4 coils to cover control voltages between 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 6 A at 24 VDC, 2.8 A at 48 VDC, 1 A at 72 VDC, 0.55 A at 110 VDC, 0.55 A at 125 VDC, 0.27 A at 220 VDC, 0.27 A at 250 VDC, 0.15 A at 400 VDC, 0.13 A at 500 VDC, 0.1 A at 600 VDC rated operational current DC-13
- 6 A at 24 to 127 VAC, 4 A at 220 to 240 VAC, 3 A at 400 to 440 VAC, 2 A at 500 VAC, 2 A at 690 VAC rated operational current AC-15
NF44E-13 Standards
ABS Certified|BAA Compliant|BV Certified|CB Certified|CE Certified|CCC Certified|cUL Listed|DNV GL Certified|EAC Certified|GOST Certified|LR Certified|RMRS Certified|RINA Certified|UL ListedSKU #2281916Part Number #NF44E-13UNSPSC39121529UPC03471523100732
