Part Number # NF80E-13
SKU # 2380916
Image Disclaimers Message
NF80E-13

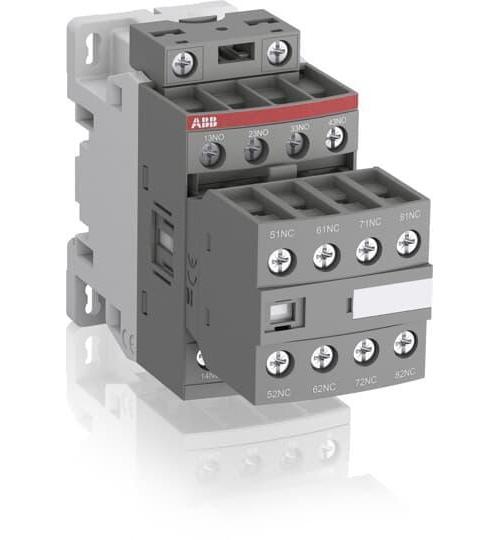

ABB NF80E-13 Contactor Relay
Part Number # NF80E-13
SKU # 2380916
$92.91 / Each
Typical price:$172.54 / Each
ABB NF80E-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | NF80E-13 |
| SKU #: | 2380916 |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Form: | 8NO, 8NO 8 Form A |
| Contact Rating: | 6 A at 127 V AC, 6 A at 127 VAC |
| Dimensions: | 45 mm W x 110.5 mm D x 86 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 8 |
| Series: | NF Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Country of origin: | FR |
| Mounting type: | Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523100336 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$92.91 / Each
Typical price:$172.54 / Each
Quantity:
- ABB Contactor Relay, Series: NF Series, 50/60 Hz, 100 to 250 VAC/VDC Coil, 8NO 8 Form A, 6 A at 127 V AC Contact, 8 Pole, Rail Mount, Screw Terminal, IP20 Enclosure, -40 to 70 deg C, 45 mm W x 110.5 mm D x 86 mm H
NF80E-13 Application
For applications that require small control relays with 2 NO and 2 NC contactsNF80E-13 Item Features
- 8 poles with a permanently fixed 4-pole auxiliary contact block
- Contactor relays have mechanically linked auxiliary contact elements
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range
- Can manage large control voltage variations
- Only 4 coils to cover control voltages between 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 6 A at 24 VDC, 2.8 A at 48 VDC, 1 A at 72 VDC, 0.55 A at 110 VDC, 0.55 A at 125 VDC, 0.27 A at 220 VDC, 0.27 A at 250 VDC, 0.15 A at 400 VDC, 0.13 A at 500 VDC, 0.1 A at 600 VDC rated operational current DC-13
- 6 A at 24 to 127 VAC, 4 A at 220 to 240 VAC, 3 A at 400 to 440 VAC, 2 A at 500 VAC, 2 A at 690 VAC rated operational current AC-15
NF80E-13 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2380916Part Number #NF80E-13UNSPSC39121529UPC03471523100336
