Part Number # NFZ22E-30
SKU # 2456150
Image Disclaimers Message

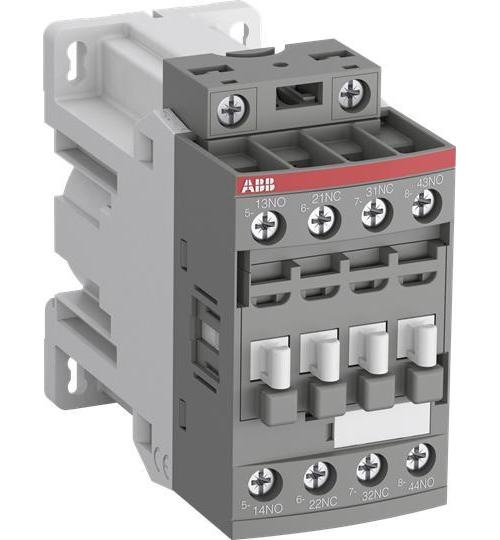

NFZ22E-30
ABB NFZ22E-30
Part Number # NFZ22E-30
SKU # 2456150
ABB NFZ22E-30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | NFZ22E-30 |
| SKU #: | 2456150 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 2NO-2NC 2 Form A/2 Form B |
| Dimensions: | 86 mm H x 45 mm W x 97 mm L |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Series: | NFZ |
| Temperature Rating (Degrees F): | -60 to 80 deg C |
| Terminal Type: | Screw |
| Type: | Low Voltage |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523101791 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB NFZ22E-30
Brand: ABB
Part Number: NFZ22E-30
Additional Description: ABB -NFZ22E-30 RELAY, 2NO2NC, 24VDC
Catalog Description: NFZ contactor relays are used for switching auxiliary and control circuits. NFZ contactor relays with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ? 250 mA 24 V DC, without need of additional interface relay. Only NFZ..-30 contactor relays need to respect the polarity on the coil terminals (A1+ and A2-). - Poles: 4-pole contactor relays (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side) - Accessories: a wide range of accessories is available.
NFZ22E-30 Application
used for switching auxiliary and control circuitsNFZ22E-30 Item Features
- NFZ contactor relays are used for switching auxiliary and control circuits
NFZ22E-30 Standards
IEC 60947-5-1|PROP65SKU #2456150Part Number #NFZ22E-30UNSPSC39121529UPC03471523101791
