Part Number # NFZB22ERT-23
SKU # 2464836
NFZB22ERT-23
ABB NFZB22ERT-23
Part Number # NFZB22ERT-23
SKU # 2464836
$89.19 / Each
Typical price:$150.31 / Each
ABB NFZB22ERT-23 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | NFZB22ERT-23 |
| SKU #: | 2464836 |
| Amperage Rating: | 0.27 A |
| Coil Voltage: | 100/250 V DC |
| Contact Form: | 2NO-2NC 2 Form A/2 Form B |
| Dimensions: | 86 mm L x 45 mm W x 86 mm H |
| Number of Poles: | 4 |
| Series: | NFZB |
| Temperature Rating (Degrees F): | -60 to 80 deg C |
| Terminal Type: | Ring Tongue |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523106932 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$89.19 / Each
Typical price:$150.31 / Each
Quantity:
- ABB, NFZB22ERT-23, Contactor Relay, Series: NFZB, 0.27 A, 68 W Power, 100/250 V DC Coil, 2NO-2NC 2 Form A/2 Form B Contact Form, 4 Pole, Ring Tongue Terminal, -60 to 80 deg C, 86 mm L x 45 mm W x 86 mm H Dimensions
NFZB22ERT-23 Application
For switching auxiliary and control circuitsNFZB22ERT-23 Item Features
- Designed in accordance to IEC 60077 and applicable parts of EN 50155 standard
- Built-in surge suppression
- Fire and smoke safety compliance to NF F 16-101 / 16-102, UNI CEI 11170 (LR4 severity level), DIN 5510-2
- Shocks and vibration withstand conforming to IEC 61373 (category 1, class B)
- Side by side mounting without restriction
- These contactor relays are of the block type design with 4 or 8 main poles
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- Low coil consumption
- NFZB..RT contactor relays comply with the latest railway rolling stock standards and allow installation in passengers or driver cabins for trains frequently operating tunnels or undergrounds
- Electronic coil interface accepting a wide DC control voltage range including several Uc control voltages used for battery supply
NFZB22ERT-23 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2464836Part Number #NFZB22ERT-23UNSPSC39121529UPC03471523106932

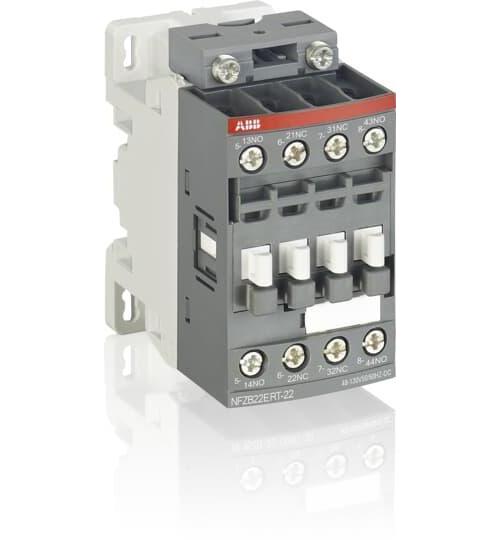

Image provided may only be a representation of final product and may include optional equipment
