Part Number # OS200J22F
SKU # 2252346
OS200J22F

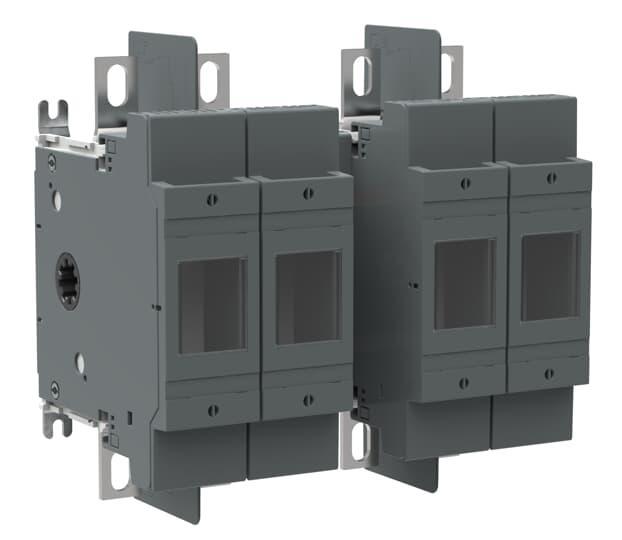

ABB OS200J22F Disconnect Switch
Part Number # OS200J22F
SKU # 2252346
ABB OS200J22F Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS200J22F |
| SKU #: | 2252346 |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 218 mm H x 228 mm W x 132 mm D |
| Horsepower: | 60 hp at 240 VAC, 125 hp at 480 VAC, 150 hp at 600 VAC |
| Number of Poles: | 4 |
| Series: | OS Series |
| Terminal Type: | Lug |
| Type: | Class J Front Operated Fusible Neutral |
| Country of origin: | FI |
| Mounting type: | Base |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019247250 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OS200J22F Disconnect Switch
Brand: ABB
Part Number: OS200J22F
ABB Disconnect Switch, Class J Front Operated Fusible Neutral, Series: OS Series, 690 VAC, 200 A, 60 hp at 240 VAC, 125 hp at 480 VAC, 150 hp at 600 VAC, 4 Poles, Base Mount, Lug Terminal, 218 mm H x 228 mm W x 132 mm D
Additional Description: ABB -OS200J22F (N) 4P 200A FUSIBLE SW NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Switch Fuses,Front Operated,4-pole,22 (Between the Poles),Class J,200 A,Handle and shaft not included,Switched - Fusible Pole
OS200J22F Application
Low Voltage ApplicationsOS200J22F Includes
Terminal Bolt KitOS200J22F Item Features
- OS switch fuses are the optimal solution for motor protection, they can be installed next to transformers in heavy industry
- The contact design combined with the fuse link enables rapid fault clearance and maintains protection level even after a fault occurs
- Our motorized switch fuses protect motors from overcurrent and can be operated both remotely and manuallyWhen in the OFF position, the fuse link is fully isolated from both ends, also the handle is padlockable with three separate padlocks for ensured safety
- Test proven type 2 coordination tables for the OS switch fuses are available online 24/7
- These motor starting solutions also help minimize the time needed for sizing all the starter components and ensure reliable operation after a fault occurs
- Designed for extreme conditions
- Modular design, all our switches have been designed for easy and cost efficient installation, maintenance and use
- Time saving accessories
- The interlocking fuse covers prevent opening while the switch is in ON position, the switch fuses have contacts on both sides of the fuse
- The fuses are totally isolated in the OFF position, reducing the risk of electric shock to authorized personne
OS200J22F Standards
PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2252346Part Number #OS200J22FUNSPSC39122233UPC06417019247250
Image provided may only be a representation of final product and may include optional equipment
