Part Number # OS200J30
SKU # 2150201
OS200J30

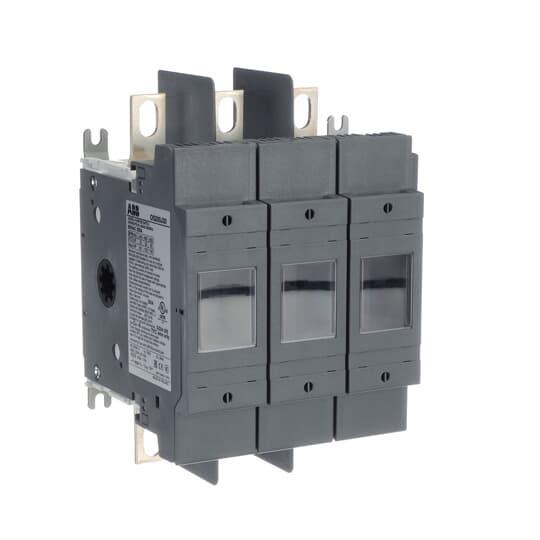

ABB OS200J30 Disconnect Switch
Part Number # OS200J30
SKU # 2150201
$1406.26 / Each
Typical price:$1947.37 / Each
ABB OS200J30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS200J30 |
| SKU #: | 2150201 |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 218 mm H x 182 mm W x 132 mm D |
| Frequency Rating: | 50/60, 50/60 Hz |
| Horsepower: | 150, 150 hp |
| Number of Poles: | 3 |
| Series: | OS Series |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Lug |
| Type: | Front Operated Fusible Open |
| Country of origin: | FI |
| Mounting type: | Base |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019247229 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1406.26 / Each
Typical price:$1947.37 / Each
Quantity:
ABB OS200J30 Disconnect Switch
Brand: ABB
Part Number: OS200J30
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 600 VAC, 200 A, 150 hp, 50/60 Hz, 3 Pole, 200 kA Short Circuit, Base Mount, Lug Terminal, 40 deg C, 218 mm H x 182 mm W x 132 mm D
Additional Description: ABB -OS200J30 200A DISCONNECT SWITCH
Catalog Description: Switch Fuses,Front Operated,3-pole,30 (Right Side),Class J,200 A,Handle and shaft not included,
OS200J30 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOS200J30 Includes
Terminal Bolt KitOS200J30 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 3-poles to the left of mechanism
- Top in, bottom out position of line terminals
OS200J30 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2150201Part Number #OS200J30UNSPSC39122233UPC06417019247229
Image provided may only be a representation of final product and may include optional equipment
