Part Number # OS30FACC12
SKU # 2167432
Image provided may only be a representation of
final product and may include optional equipment
Brand: ABB
OS30FACC12

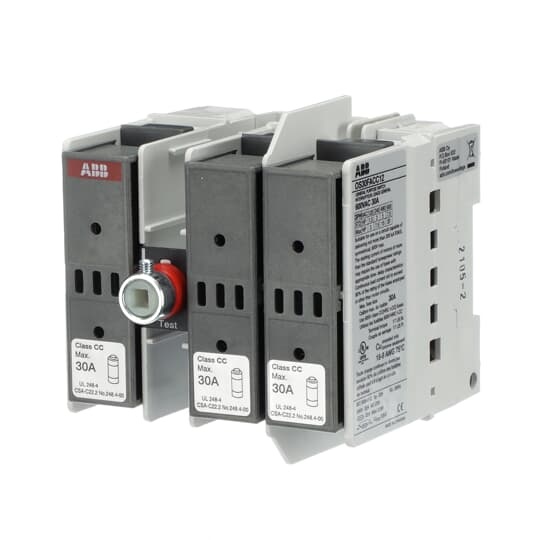

ABB OS30FACC12 Disconnect Switch
Part Number # OS30FACC12
SKU # 2167432
$285.31 / Each
Typical price:$395.10 / Each
ABB OS30FACC12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS30FACC12 |
| SKU #: | 2167432 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 234 mm L x 130 mm W x 130 mm H |
| Horsepower: | 20, 20 hp |
| Number of Poles: | 3 |
| Series: | OS Series |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Screw |
| Type: | Front Operated Fusible Open |
| Country of origin: | FI |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019420752 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$285.31 / Each
Typical price:$395.10 / Each
Quantity:
ABB OS30FACC12 Disconnect Switch
Brand: ABB
Part Number: OS30FACC12
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 600 VAC, 30 A, 20 hp, 3 Pole, 200 kA Short Circuit, Surface Mount, Screw Terminal, 40 deg C, 234 mm L x 130 mm W x 130 mm H
Additional Description: ABB -OS30FACC12 SWITCH FUSE
Catalog Description: Switch Fuses,Front operated,3-pole,12 (Between the Poles),Class CC,30 A,Handle and shaft not included
OS30FACC12 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOS30FACC12 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class CC fuse compatible
- 1-pole to the left of mechanism, 2-poles to the right of mechanism
OS30FACC12 Standards
UL 98 / IEC 60947-3SKU #2167432Part Number #OS30FACC12UNSPSC39122233UPC06417019420752
