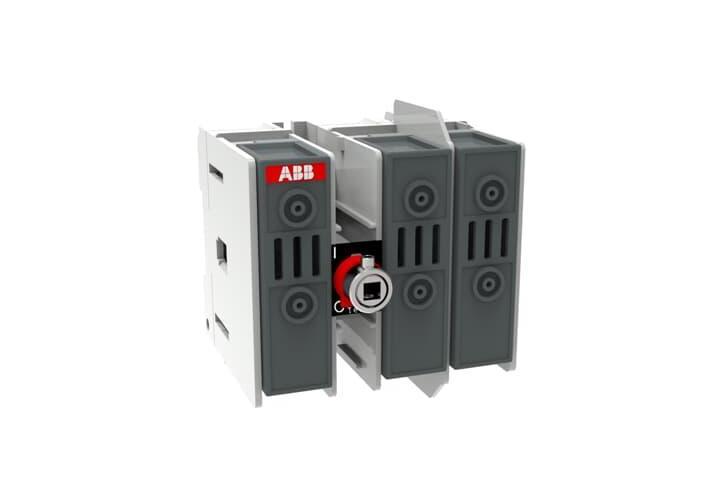

ABB OS30FAJ12 Disconnect Switch
Part Number # OS30FAJ12
SKU # 2167431
$225.49 / Each
$395.10/Each
159 In Stock
Ships in 1 Business Day
ABB OS30FAJ12 Key Features
Brand: ABB
Part Number # OS30FAJ12
SKU #2167431
Amperage Rating: 30, 30 A
Dimensions: 100 mm H x 143 mm W x 119 mm D
Frequency Rating: 50/60, 50/60 Hz
Horsepower: 20, 20 hp
Number of Poles: 3
Series: OS Series
Temperature Rating (Degrees F): 40, 40 deg C
Terminal Type: Screw
Type: Front Operated Fusible Open
Voltage Rating: 600, 600 VAC
Country of origin: FI
Mounting type: Base
Manufacturer Name: ABB
UNSPSC: 39122233
UPC: 06417019420912
$225.49 / Each
$395.10/Each
ABB OS30FAJ12 Disconnect Switch
Brand: ABB
Part Number: OS30FAJ12
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 600 VAC, 30 A, 20 hp, 50/60 Hz, 3 Pole, Base Mount, Screw Terminal, 40 deg C, 100 mm H x 143 mm W x 119 mm D
Additional Description: ABB -OS30FAJ12 3P 30A J FUSIBLE SW
Catalog Description: Switch Fuses,Front operated,3-pole,12 (Between the Poles),Class J,30 A,Handle and shaft not included
OS30FAJ12 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOS30FAJ12 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 1-pole to the left of mechanism, 2-poles to the right of mechanism
OS30FAJ12 Standards
RoHS Compliant|CE Certified|UL Listed|CSA CertifiedSKU #2167431Part Number #OS30FAJ12UNSPSC39122233UPC06417019420912
