OS30FAJ12P

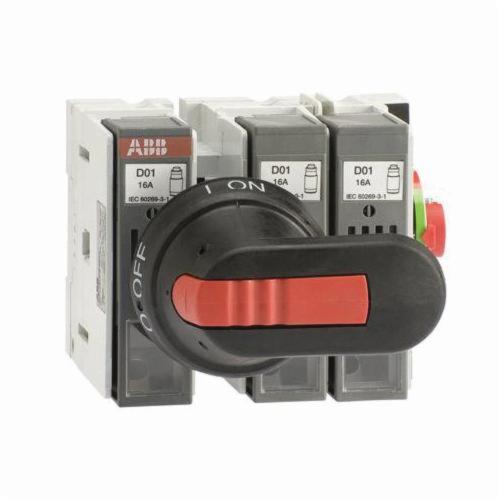

ABB OS30FAJ12P Disconnect Switch
Part Number # OS30FAJ12P
SKU # 2286704
ABB OS30FAJ12P Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS30FAJ12P |
| SKU #: | 2286704 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 97 mm H x 106 mm W x 105 mm D |
| Enclosure Type: | NEMA 1/3R/12 |
| Horsepower: | 20, 20 hp |
| Number of Poles: | 12 |
| Series: | OS Series |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Screw |
| Type: | Fusible Open |
| Country of origin: | FI |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019420998 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OS30FAJ12P Disconnect Switch
Brand: ABB
Part Number: OS30FAJ12P
ABB Disconnect Switch, Fusible Open, Series: OS Series, 600 VAC, 30 A, 20 hp, 12 Pole, 200 kA Short Circuit, NEMA 1/3R/12, Surface Mount, Screw Terminal, 40 deg C, 97 mm H x 106 mm W x 105 mm D
Additional Description: ABB -OS30FAJ12P (N) 3P 30A SW J FUSE W/ HDL SHFT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: 3-Pole, 30 Amps, J Fuse Switch, Including a black ON-OFF plastic handle and shaft as standard. The shaft is adjustable for a range of mounting depths. The handle is IP65 protected, Nema type 1, 3R, 12, padlockable in the OFF-position and with door interlock in the ON-position. Shaft mounting depths measured from the left side of the switch, 3-pole: H=154...166mm and 4-pole: H=189...201mm. Fuse standards UL 248.
OS30FAJ12P Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment, motor control centers and low voltage applicationsOS30FAJ12P Includes
Black ON-OFF Plastic Handle and ShaftOS30FAJ12P Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 1-pole to the left of mechanism, 2-poles to the right of mechanism
- Shaft mounting depths measured from the left side of the switch
OS30FAJ12P Standards
UL 98|UL 248|CSA C22.2 No. 4|IEC 60947-1|IEC 60947-3SKU #2286704Part Number #OS30FAJ12PUNSPSC39122233UPC06417019420998
