Part Number # OS400J03
SKU # 2175969
Image provided may only be a representation of
final product and may include optional equipment
OS400J03

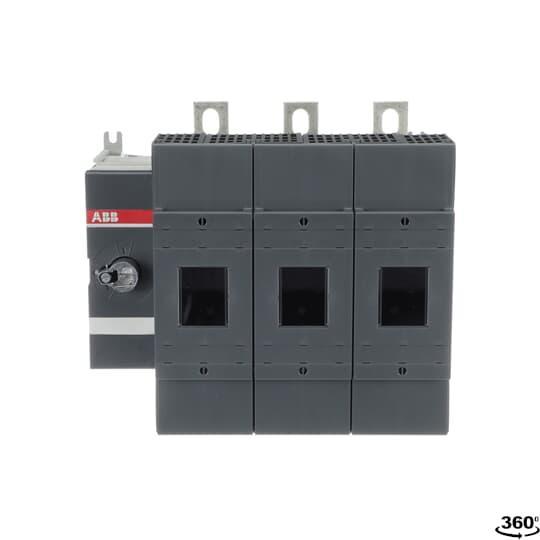

ABB OS400J03 Disconnect Switch
Part Number # OS400J03
SKU # 2175969
ABB OS400J03 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS400J03 |
| SKU #: | 2175969 |
| Amperage Rating: | 400, 400 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 230 mm H x 255 mm W x 176 mm D |
| Horsepower: | 350, 350 hp |
| Number of Poles: | 3 |
| Series: | OS Series |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Lug |
| Type: | Front Operated Fusible Open |
| Country of origin: | FI |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019246116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OS400J03 Disconnect Switch
Brand: ABB
Part Number: OS400J03
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 1000 VAC, 400 A, 350 hp, 3 Pole, 200 kA Short Circuit, 1NC-1NO Contact Form, Surface Mounting, Lug Terminal, 40 deg C, 230 mm H x 255 mm W x 176 mm D Dimensions
Additional Description: ABB -OS400J03 (N) 3P SW 400A J FUSE UL98 LH NON-CANCELLABLE , NON-RETURNABLE
Catalog Description: Switch Fuses,Front Operated,3-pole,03 (Left Side),Class J,400 A,Handle and shaft not included,
OS400J03 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOS400J03 Includes
Terminal Bolt KitOS400J03 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 3-poles to the right of mechanism
OS400J03 Standards
UL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3|CE CertifiedSKU #2175969Part Number #OS400J03UNSPSC39122233UPC06417019246116
