OS400J30

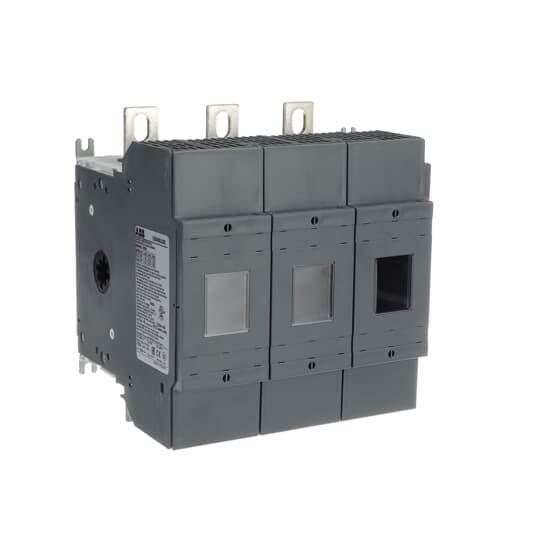

ABB OS400J30 Disconnect Switch
Part Number # OS400J30
SKU # 2182415
$1779.33 / Each
Typical price:$2624.72 / Each
ABB OS400J30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS400J30 |
| SKU #: | 2182415 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 230 mm H x 255 mm W x 176 mm D |
| Horsepower: | 125 hp at 240 VAC, 250 hp at 480 VAC, 350 hp at 600 VAC |
| Number of Poles: | 3 |
| Series: | OS Series |
| Terminal Type: | Lug |
| Type: | Class J Front Operated Fusible |
| Country of origin: | FI |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019246369 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1779.33 / Each
Typical price:$2624.72 / Each
Quantity:
- ABB Disconnect Switch, Class J Front Operated Fusible, Series: OS Series, 690 VAC, 400 A, 125 hp at 240 VAC, 250 hp at 480 VAC, 350 hp at 600 VAC, 3 Poles, DIN Rail/Surface Mount, Lug Terminal, 230 mm H x 255 mm W x 176 mm D
OS400J30 Application
For used as motor disconnects or industrial control panel disconnects on service entrance equipment, panelboard, switchboard, industrial control equipment and motor control centersOS400J30 Includes
Terminal Bolt KitOS400J30 Item Features
- OS switch fuses are the optimal solution for motor protection, they can be installed next to transformers in heavy industry
- The contact design combined with the fuse link enables rapid fault clearance and maintains protection level even after a fault occurs
- Our motorized switch fuses protect motors from overcurrent and can be operated both remotely and manually
- OS switch fuses are designed for personal safety as well as for reliable process protection, when in the ON position, the interlocked fuse protection covers cannot be removed
- When in the OFF position, the fuse link is fully isolated from both ends, also the handle is padlockable with three separate padlocks for ensured safety
- Test proven type 2 coordination tables for the OS switch fuses are available online 24/7
- These motor starting solutions also help minimize the time needed for sizing all the starter components and ensure reliable operation after a fault occurs
- Designed for extreme conditions
- Modular design, all our switches have been designed for easy and cost efficient installation, maintenance and use
- Time saving accessories
- The interlocking fuse covers prevent opening while the switch is in ON position, the switch fuses have contacts on both sides of the fuse
- The fuses are totally isolated in the OFF position, reducing the risk of electric shock to authorized personnel
- Fuses are totally isolated in the OFF position, reducing the risk of shock to authorized personnel
OS400J30 Standards
EAC Approved|CCC Certified|CE Certified|CSA Certified|UL 98SKU #2182415Part Number #OS400J30UNSPSC39122233UPC06417019246369
