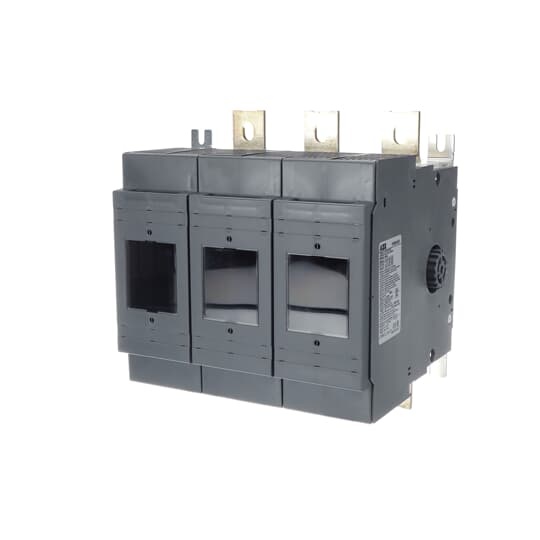

ABB OS600J03 Disconnect Switch
Part Number # OS600J03
SKU # 2189720
$4012.52 / Each
Only 5 left in stock order soon
Ships in 1 Business Day
ABB OS600J03 Key Features
Brand: ABB
Part Number # OS600J03
SKU #2189720
Amperage Rating: 600, 600 A
Contact Form: 1NC-1NO, 1NO-1NC
Dimensions: 306 mm H x 343 mm W x 233 mm D
Horsepower: 500, 500 hp
Number of Poles: 3
Series: OS Series
Short Circuit Current Rating (kA): 200, 200 kA
Temperature Rating (Degrees F): 40, 40 deg C
Terminal Type: Lug
Type: Front Operated Fusible Open
Voltage Rating: 1000, 1000 VAC
Country of origin: FI
Mounting type: Surface
Manufacturer Name: ABB
UNSPSC: 39122233
UPC: 06417019284026
$4012.52 / Each
ABB OS600J03 Disconnect Switch
Brand: ABB
Part Number: OS600J03
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 1000 VAC, 600 A, 500 hp, 3 Pole, 200 kA Short Circuit, 1NC-1NO Contact Form, Surface Mounting, Lug Terminal, 40 deg C, 306 mm H x 343 mm W x 233 mm D Dimensions
Additional Description: ABB -OS600J03 (N) 3P SW 600A J FUSE 600V UL98 NON CANCELLABLE/NON RETURNABLE
Catalog Description: Switch Fuses,Front Operated,3-pole,03 (Left Side),Class J,600 A,Handle and shaft not included,
OS600J03 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOS600J03 Includes
Terminal Bolt KitOS600J03 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class J fuse compatible
- 3-poles to the right of mechanism
OS600J03 Standards
UL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3SKU #2189720Part Number #OS600J03UNSPSC39122233UPC06417019284026
