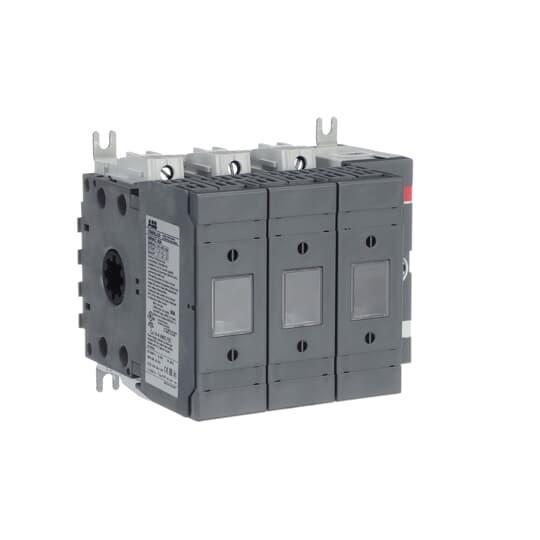

ABB OS60GJ30 Disconnect Switch
Part Number # OS60GJ30
SKU # 2262817
$427.90 / Each
$652.32/Each
ABB OS60GJ30 Key Features
Brand: ABB
Part Number # OS60GJ30
SKU #2262817
Amperage Rating: 60 A
Dimensions: 112 mm H x 145 mm W x 118 mm D
Horsepower: 15 hp at 240 VAC, 30 hp at 480 VAC, 50 hp at 600 VAC
Number of Poles: 3
Series: OS Series
Terminal Type: Screw
Type: Class J Front Operated Fusible
Voltage Rating: 600/690, 600/690 VAC
Country of origin: FI
Mounting type: Base
Manufacturer Name: ABB
UNSPSC: 39122233
UPC: 06417019482392
$427.90 / Each
$652.32/Each
ABB OS60GJ30 Disconnect Switch
Brand: ABB
Part Number: OS60GJ30
ABB Disconnect Switch, Class J Front Operated Fusible, Series: OS Series, 600/690 VAC, 60 A, 15 hp at 240 VAC, 30 hp at 480 VAC, 50 hp at 600 VAC, 3 Poles, Base Mount, Screw Terminal, 112 mm H x 145 mm W x 118 mm D
Additional Description: ABB -OS60GJ30 3P SW 60A J FUSE 600V UL98
Catalog Description: Switch Fuses,Front Operated,3-pole,30 (Right Side),Class J,60 A,Handle and shaft not included,
OS60GJ30 Application
Low Voltage ApplicationsOS60GJ30 Includes
Protected Tunnel TerminalOS60GJ30 Item Features
- OS switch fuses are the optimal solution for motor protection, they can be installed next to transformers in heavy industry
- The contact design combined with the fuse link enables rapid fault clearance and maintains protection level even after a fault occurs
- Our motorized switch fuses protect motors from overcurrent and can be operated both remotely and manually
OS60GJ30 Standards
EAC Approved|CCC Certified|CE Certified|CSA Certified|UL 98SKU #2262817Part Number #OS60GJ30UNSPSC39122233UPC06417019482392
