OS800L03

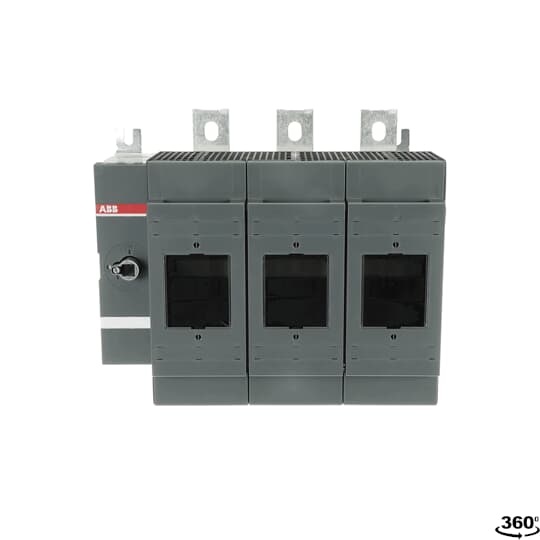

ABB OS800L03 Disconnect Switch
Part Number # OS800L03
SKU # 2213245
$4669.37 / Each
Typical price:$6336.81 / Each
ABB OS800L03 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OS800L03 |
| SKU #: | 2213245 |
| Amperage Rating: | 800, 800 A |
| Dimensions: | 306 mm H x 343 mm W x 233 mm D |
| Frequency Rating: | 50/60, 50/60 Hz |
| Horsepower: | 500, 500 hp |
| Number of Poles: | 3 |
| Series: | OS Series |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Lug |
| Type: | Front Operated Fusible Open |
| Country of origin: | FI |
| Mounting type: | Base |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019284132 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4669.37 / Each
Typical price:$6336.81 / Each
Quantity:
ABB OS800L03 Disconnect Switch
Brand: ABB
Part Number: OS800L03
ABB Disconnect Switch, Front Operated Fusible Open, Series: OS Series, 600 VAC, 800 A, 500 hp, 50/60 Hz, 3 Pole, Base Mount, Lug Terminal, 40 deg C, 306 mm H x 343 mm W x 233 mm D
Additional Description: ABB -OS800L03 (N) 3P 800A FUSIBLE SW NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Switch Fuses,Front Operated,3-pole,03 (Left Side),Class L,800 A,Handle and shaft not included,
OS800L03 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOS800L03 Includes
Terminal Bolt KitOS800L03 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- Front operated mode
- Class L fuse compatible
- 3-poles to the right of mechanism
OS800L03 Standards
CE Certified|UL Listed|CSA CertifiedSKU #2213245Part Number #OS800L03UNSPSC39122233UPC06417019284132
