Part Number # OT1200U03
SKU # 2262919
OT1200U03

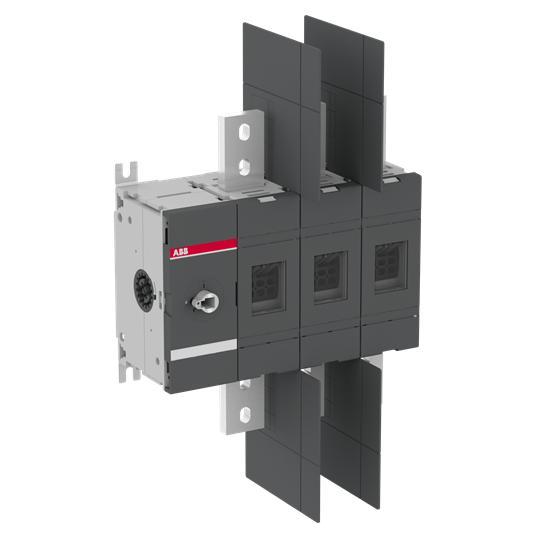

ABB OT1200U03 Disconnect Switch
Part Number # OT1200U03
SKU # 2262919
$6546.14 / Each
Typical price:$10211.22 / Each
ABB OT1200U03 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OT1200U03 |
| SKU #: | 2262919 |
| Amperage Rating: | 1200, 1200 A |
| Dimensions: | 372 mm H x 335 mm W x 127 mm D |
| Number of Poles: | 3 |
| Series: | OT Series |
| Short Circuit Current Rating (kA): | 110, 110 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Lug |
| Type: | Front Operated Non-Fusible Open |
| Country of origin: | FI |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019309392 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6546.14 / Each
Typical price:$10211.22 / Each
Quantity:
ABB OT1200U03 Disconnect Switch
Brand: ABB
Part Number: OT1200U03
ABB Disconnect Switch, Front Operated Non-Fusible Open, Series: OT Series, 1000 VAC, 1200 A, 3 Pole, 110 kA Short Circuit, Surface Mount, Lug Terminal, 40 deg C, 372 mm H x 335 mm W x 127 mm D
Additional Description: ABB -OT1200U03 3P SW 1200A NF 600V UL98
Catalog Description: 3-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
OT1200U03 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOT1200U03 Includes
Terminal Bolt KitOT1200U03 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
- 3-poles to right of mechanism
OT1200U03 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2262919Part Number #OT1200U03UNSPSC39122233UPC06417019309392
Image provided may only be a representation of final product and may include optional equipment
