OT125F3

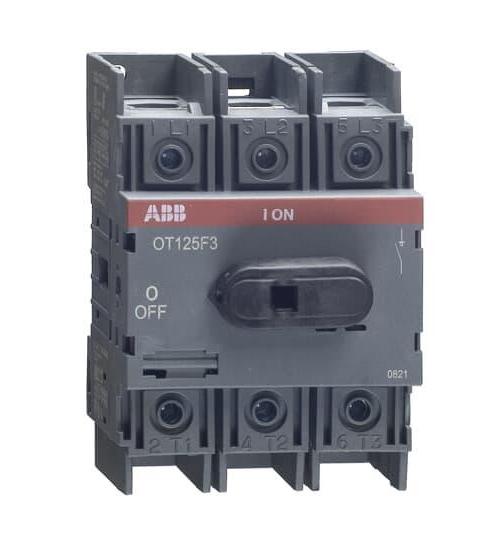

ABB OT125F3 Disconnect Switch
Part Number # OT125F3
SKU # 2167437
ABB OT125F3 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OT125F3 |
| SKU #: | 2167437 |
| Amperage Rating: | 125 A |
| Dimensions: | 70 mm H x 100 mm W x 74 mm D |
| Frequency Rating: | 50/60, 50/60 Hz |
| Horsepower: | 50, 50 hp |
| Number of Poles: | 3 |
| Series: | OT Series |
| Short Circuit Current Rating (kA): | 3.6, 3.6 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Screw |
| Type: | Front Operated Non-Fusible Open |
| Country of origin: | FI |
| Mounting type: | Base |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019391632 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OT125F3 Disconnect Switch
Brand: ABB
Part Number: OT125F3
ABB Disconnect Switch, Front Operated Non-Fusible Open, Series: OT Series, 600 VAC, 125 A, 50 hp, 50/60 Hz, 3 Pole, 3.6 kA Short Circuit, Base Mount, Screw Terminal, 40 deg C, 70 mm H x 100 mm W x 74 mm D
Additional Description: ABB -OT125F3 (O) SWITCH NF 3P 125A UL98 NON-RETURNABLE , NON-CANCELLABLE
Catalog Description: 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
OT125F3 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOT125F3 Includes
Protected Terminal ClampOT125F3 Item Features
- Fully enclosed 125 A conventional thermal current
- Top in bottom out bottom in top out position of line terminals
- 8 kV rated impulse withstand voltage
- 750 VAC rated insulation voltage
- 3.6 kA rated short circuit making capacity at 690 VAC
- At rated operating conditions per pole 6.3 W power loss
- Mechanism on top of the switch switches operating mechanism
- Quick make, quick brake mechanism
OT125F3 Standards
CE Certified|UL Listed|CSA CertifiedSKU #2167437Part Number #OT125F3UNSPSC39122233UPC06417019391632
Image provided may only be a representation of final product and may include optional equipment
