OT30FT3

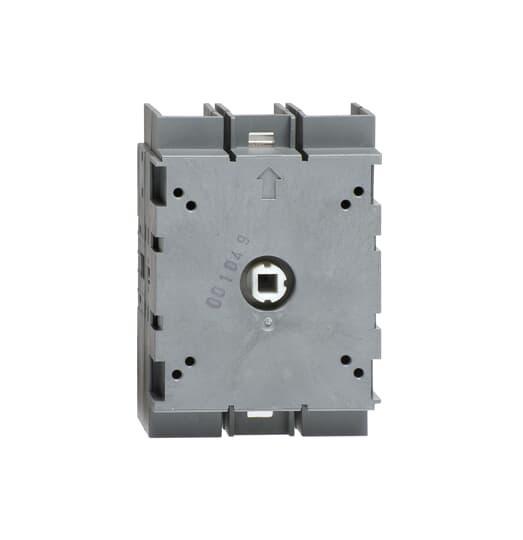

ABB OT30FT3 Disconnect Switch
Part Number # OT30FT3
SKU # 2167429
ABB OT30FT3 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OT30FT3 |
| SKU #: | 2167429 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 70 mm H x 100 mm W x 66.5 mm D |
| Enclosure Type: | IP20 |
| Horsepower: | 30, 30 hp |
| Number of Poles: | 3 |
| Series: | OT Series |
| Short Circuit Current Rating (kA): | 30, 30 kA |
| Temperature Rating (Degrees F): | 40, 40 deg C |
| Terminal Type: | Screw |
| Type: | Front Operated Non-Fusible Open |
| Country of origin: | FI |
| Mounting type: | Door |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019392042 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OT30FT3 Disconnect Switch
Brand: ABB
Part Number: OT30FT3
ABB Disconnect Switch, Front Operated Non-Fusible Open, Series: OT Series, 600 VAC, 30 A, 30 hp, 3 Pole, 30 kA Short Circuit, IP20, Door Mount, Screw Terminal, 40 deg C, 70 mm H x 100 mm W x 66.5 mm D
Additional Description: ABB -OT30FT3 (O) 3P 30A UL98 NF DOOR MOUNT SW
Catalog Description: 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with front protected clamp terminals, handle and shaft are not included
OT30FT3 Application
For motor disconnects or industrial control panel disconnects on service entrance equipment, panelboards, switchboards, industrial control equipment and motor control centersOT30FT3 Includes
Protected Terminal ClampOT30FT3 Item Features
- Finger proof - dead front construction plus terminal shrouds reduce the risk of touching live parts, improving safety and reliability of the installation
- Switches can be used equally well with either top or bottom incoming power feed
- Modular construction
- The handle and shaft provide door interlock so that the door cannot be opened when the switch is in the on position
- Handles can be padlocked in the "OFF" position with up to three padlocks
- Welded contact protection
- Clear position indication
- Excellent track resistant material reduces the risk of flash over between phases in even the most severe circumstances
- Quick make, quick brake mechanism
- Fuses are totally isolated in the off position, reducing the risk of shock to authorized personnel
- Superior short circuit protection
OT30FT3 Standards
UL 98|CSA C22.2 No. 4|IEC 60947-1/60947-3|CE CertifiedSKU #2167429Part Number #OT30FT3UNSPSC39122233UPC06417019392042
Image provided may only be a representation of final product and may include optional equipment
