Part Number # OTDC320UFV11
SKU # 2369273

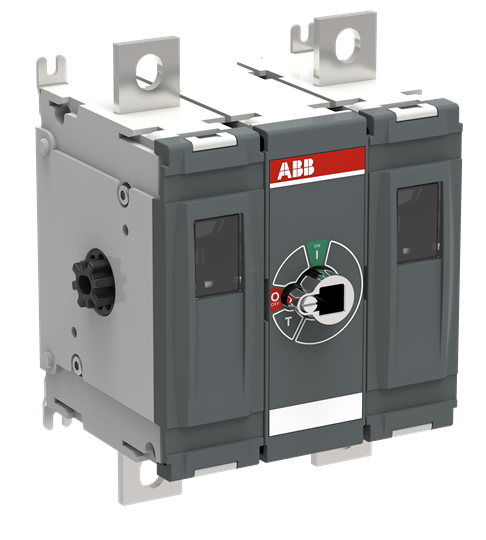

Image provided may only be a representation of
final product and may include optional equipment
OTDC320UFV11
ABB OTDC320UFV11 Disconnect Switches
Part Number # OTDC320UFV11
SKU # 2369273
ABB OTDC320UFV11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OTDC320UFV11 |
| SKU #: | 2369273 |
| Amperage Rating: | 400 A |
| Contact Form: | Switch |
| Dimensions: | 211 mm H x 157.5 mm W x 135 mm D |
| Enclosure Type: | IP20 |
| Number of Poles: | 2 |
| Series: | OTDC |
| Short Circuit Current Rating (kA): | 10 kA |
| Terminal Type: | Lug |
| Type: | Rotary |
| Country of origin: | FI |
| Mounting type: | Base |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122233 |
| UPC: | 06417019872957 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OTDC320UFV11 Disconnect Switches
Brand: ABB
Part Number: OTDC320UFV11
Additional Description: ABB -OTDC320UFV11 (N) 2P 320A PV SW 1500VDC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: A fully optimized two-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industrys rapid adoption of 1500V DC solutions.The two-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses by up to 35 percent. Measuring just 150mm wide and 122mm high, the OTDC range of 1500V DC switches is also up to 30 percent smaller than conventional solutions. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters.Main characteristics for this particular OTDC type:Disconnect single PV circuit, Approved according to UL98B and IEC 60947-1,-3
OTDC320UFV11 Standards
UL98B|IEC 60947-1|IEC 60947-3|PROP65SKU #2369273Part Number #OTDC320UFV11UNSPSC39122233UPC06417019872957
