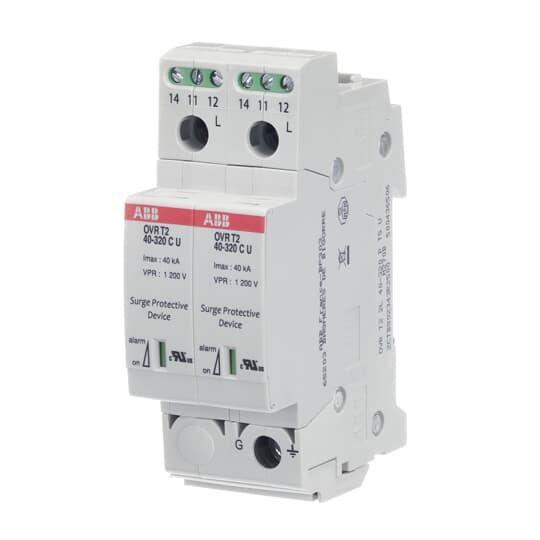

ABB OVRT22L40320PTSU Surge Protective Device
Part Number # OVRT22L40320PTSU
SKU # 2293021
ABB OVRT22L40320PTSU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT22L40320PTSU |
| SKU #: | 2293021 |
| Class: | II |
| Dimensions: | 35.6 mm W x 64.8 mm D x 98.5 mm H |
| Electrical Ratings: | 320, 320 V |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operating Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Indicator Type: | State/Remote |
| Modes of Protection: | L-L/L-G |
| Number of Poles: | 2 |
| Peak Surge Current: | 40 kA |
| Phase: | 2 |
| Response Time: | <25, <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Terminal Type: | Plug-In |
| Type: | Type 2 |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518620 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OVRT22L40320PTSU Surge Protective Device
Brand: ABB
Part Number: OVRT22L40320PTSU
ABB Surge Protective Device, 320 V, 50/60 Hz, 2 Pole, 200 kA Short Circuit Current Rating, 20 kA Nominal Discharge, Modes of Protection: L-L/L-G, <25 ns Response, Class: II, NEMA 1 Enclosure, DIN Rail Mount, Gray, 35.6 mm W x 64.8 mm D x 98.5 mm H
Additional Description: ABB -OVRT22L40320PTSU (N) OVR SPD 2P 40KA 320V P TS 2P,320V,PLG,W/AUX,3RD ED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: B80234325
OVRT22L40320PTSU Application
For providing protection to valuable equipment and help keep an operation up and runningOVRT22L40320PTSU Item Features
- End of life indicator
- With 1NO-1NC integrated auxiliary contact
- The OVR DIN rail SPDs utilize fast acting metal oxide varistor (MOV) technology H to limit overvoltage to values compatible with the sensitive equipment connected to the network
OVRT22L40320PTSU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2293021Part Number #OVRT22L40320PTSUUNSPSC39121610UPC03660308518620
Image provided may only be a representation of final product and may include optional equipment
