Part Number # OVRT23L40150PTSU
SKU # 2271701
Image provided may only be a representation of
final product and may include optional equipment
OVRT23L40150PTSU

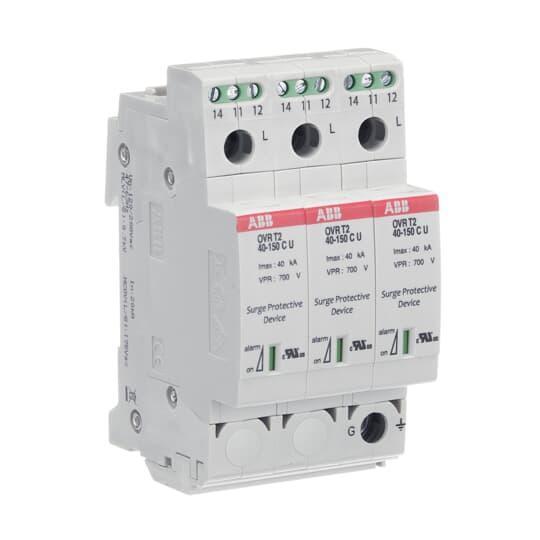

ABB OVRT23L40150PTSU Surge Protective Device
Part Number # OVRT23L40150PTSU
SKU # 2271701
ABB OVRT23L40150PTSU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT23L40150PTSU |
| SKU #: | 2271701 |
| Class: | II |
| Dimensions: | 53.4 mm W x 64.8 mm D x 98.5 mm H |
| Electrical Ratings: | 175/350, 175/350 V |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operating Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Indicator Type: | State/Remote |
| Modes of Protection: | L-L/L-G |
| Number of Poles: | 3 |
| Peak Surge Current: | 40 kA |
| Phase: | 3 |
| Response Time: | <25, <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Terminal Type: | Plug-In |
| Type: | Type 2 |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518651 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OVRT23L40150PTSU Surge Protective Device
Brand: ABB
Part Number: OVRT23L40150PTSU
ABB Surge Protective Device, 175/350 V, 50/60 Hz, 3 Pole, 200 kA Short Circuit Current Rating, 20 kA Nominal Discharge, Modes of Protection: L-L/L-G, <25 ns Response, Class: II, NEMA 1 Enclosure, DIN Rail Mount, Gray, 53.4 mm W x 64.8 mm D x 98.5 mm H
Additional Description: ABB -OVRT23L40150PTSU (N) OVR SPD 3P 40KA 175V P TS ED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Three pole OVR DIN rail surge protection device with a service voltage of 240/120V split phase, 208/120V Wye, a maximum discharge current of 40 kA, and an auxiliary contact for remote monitoring
OVRT23L40150PTSU Application
For providing protection to valuable equipment and help keep an operation up and runningOVRT23L40150PTSU Item Features
- End of life indicator
- With 1NO-1NC integrated auxiliary contact
- The OVR DIN rail SPDs utilize fast acting metal oxide varistor (MOV) technology H to limit overvoltage to values compatible with the sensitive equipment connected to the network
OVRT23L40150PTSU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2271701Part Number #OVRT23L40150PTSUUNSPSC39121610UPC03660308518651
