Part Number # OVRT23L40550PTSU
SKU # 2240680
Image Disclaimers Message
OVRT23L40550PTSU

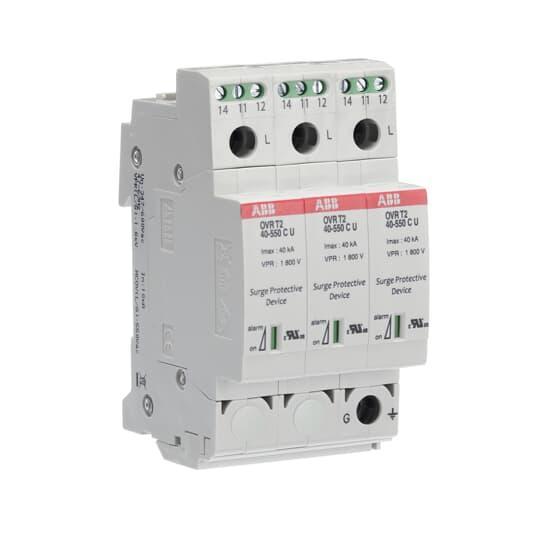

ABB OVRT23L40550PTSU Surge Protective Device
Part Number # OVRT23L40550PTSU
SKU # 2240680
$731.52 / Each
Typical price:$875.21 / Each
ABB OVRT23L40550PTSU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT23L40550PTSU |
| SKU #: | 2240680 |
| Class: | II |
| Dimensions: | 53.4 mm W x 64.8 mm D x 98.5 mm H |
| Electrical Ratings: | 550/1100, 550/1100 V |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operating Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Indicator Type: | State/Remote |
| Modes of Protection: | L-L/L-G |
| Number of Poles: | 3 |
| Peak Surge Current: | 40 kA |
| Phase: | 3 |
| Response Time: | <25, <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Terminal Type: | Plug-In |
| Type: | Type 2 |
| Color: | Gray |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518682 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$731.52 / Each
Typical price:$875.21 / Each
Quantity:
- ABB System pro M compact, OVRT23L40550PTSU, Surge Protective Device, Type 2, Series: OVR, 550/1100 V Electrical Rating, 50/60 Hz Frequency, 3 Pole, 200 kA Short Circuit, 40 kA Peak Surge Current, 10 kA Nominal Discharge, Modes of Protection: L-L/L-G, <25 ns Response, State/Remote Indicator, 3 ph, Class: II, Environmental Conditions: -40 to 176 deg F Operating Temperature, NEMA 1 Enclosure, DIN Rail Mounting, Plug-In Terminal, Gray, 53.4 mm W x 64.8 mm D x 98.5 mm H Dimensions
OVRT23L40550PTSU Application
For providing protection to valuable equipment and help keep an operation up and runningOVRT23L40550PTSU Item Features
- End of life indicator
- With 1NO-1NC integrated auxiliary contact
- The OVR DIN rail SPDs utilize fast acting metal oxide varistor (MOV) technology H to limit overvoltage to values compatible with the sensitive equipment connected to the network
OVRT23L40550PTSU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2240680Part Number #OVRT23L40550PTSUUNSPSC39121610UPC03660308518682
