Part Number # OVRT23N40320PTSU
SKU # 2220941
OVRT23N40320PTSU
ABB OVRT23N40320PTSU Surge Protective Device
Part Number # OVRT23N40320PTSU
SKU # 2220941
$666.98 / Each
Typical price:$917.24 / Each
ABB OVRT23N40320PTSU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT23N40320PTSU |
| SKU #: | 2220941 |
| Class: | II |
| Dimensions: | 71.2 mm W x 64.8 mm D x 98.5 mm H |
| Electrical Ratings: | 320/640 V |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operation |
| Frequency Rating: | 50/60 Hz |
| Indicator Type: | State/Remote |
| Modes of Protection: | L-L /L-N /L-G /N-G |
| Number of Poles: | 4 |
| Peak Surge Current: | 40 kA |
| Phase: | 3 |
| Response Time: | <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200 kA |
| Type: | Type 2 Pluggable |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518729 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$666.98 / Each
Typical price:$917.24 / Each
Quantity:
- ABB, OVRT23N40320PTSU, Surge Protective Device With Auxiliary Contact, Type 2 Pluggable, Series: OVR, 320/640 V Electrical Rating, 50/60 Hz Frequency, 4 Pole, 200 kA Short Circuit, 40 kA Peak Surge Current, 20 kA Nominal Discharge, Modes of Protection: L-L /L-N /L-G /N-G, <25 ns Response, State/Remote Indicator, 3 ph, Class: II, Environmental Conditions: -40 to 176 deg F Operation, NEMA 1 Enclosure, DIN Rail Mounting, Gray, 71.2 mm W x 64.8 mm D x 98.5 mm H Dimensions
OVRT23N40320PTSU Application
For protecting valuable equipment against transient surges and to help keep operations up and runningOVRT23N40320PTSU Item Features
- Fast acting metal oxide varistor (MOV) technology limits over voltage to values compatible with the sensitive equipment connected to the network
OVRT23N40320PTSU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2220941Part Number #OVRT23N40320PTSUUNSPSC39121610UPC03660308518729

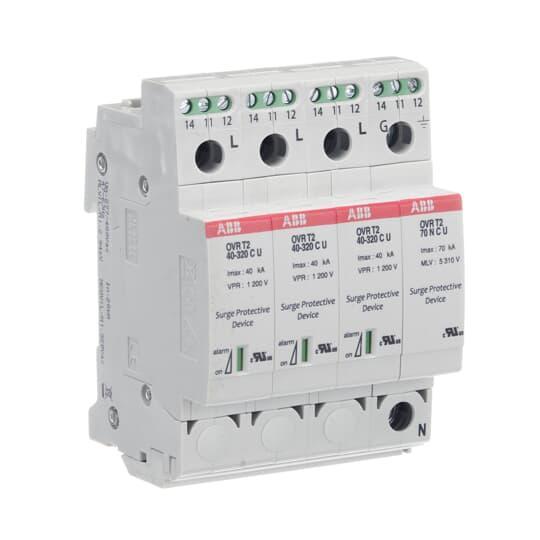

Image provided may only be a representation of final product and may include optional equipment
