Part Number # OVRT23N40550PTSU
SKU # 2227001
Image provided may only be a representation of
final product and may include optional equipment
OVRT23N40550PTSU

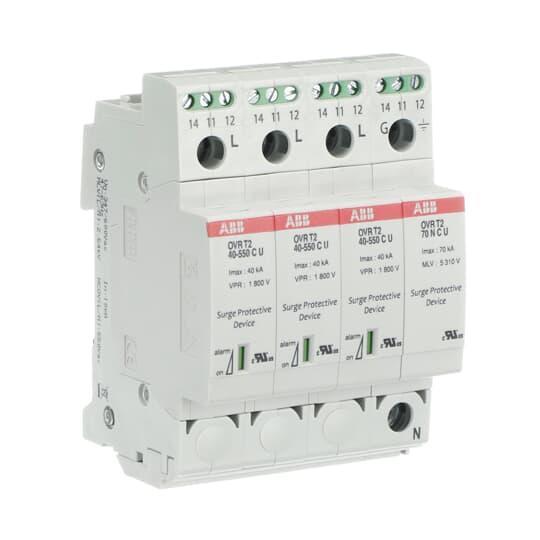

ABB OVRT23N40550PTSU Surge Protective Device
Part Number # OVRT23N40550PTSU
SKU # 2227001
ABB OVRT23N40550PTSU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT23N40550PTSU |
| SKU #: | 2227001 |
| Class: | II |
| Dimensions: | 71.2 mm W x 64.8 mm D x 98.5 mm H |
| Electrical Ratings: | 550/1100, 550/1100 V |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operating Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Indicator Type: | State/Remote |
| Modes of Protection: | L-L/L-N/L-G/N-G |
| Number of Poles: | 4 |
| Peak Surge Current: | 40 kA |
| Phase: | 3 |
| Response Time: | <25, <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Terminal Type: | Plug-In |
| Type: | Type 2 |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518743 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB OVRT23N40550PTSU Surge Protective Device
Brand: ABB
Part Number: OVRT23N40550PTSU
ABB Surge Protective Device, 550/1100 V, 50/60 Hz, 4 Pole, 200 kA Short Circuit Current Rating, 10 kA Nominal Discharge, Modes of Protection: L-L/L-N/L-G/N-G, <25 ns Response, Class: II, NEMA 1 Enclosure, DIN Rail Mount, Gray, 71.2 mm W x 64.8 mm D x 98.5 mm H
Additional Description: ABB -OVRT23N40550PTSU OVR SPD 3P+N 40KA 550V P TS 3RD ED Ed
Catalog Description: Three pole plus neutral OVR DIN rail surge protective device with a service voltage of 600/347V Wye, a maximum discharge current of 40 kA, and auxiliary contacts for remote monitoring
OVRT23N40550PTSU Application
For providing protection to valuable equipment and help keep an operation up and runningOVRT23N40550PTSU Item Features
- End of life indicator
- With 1NO-1NC integrated auxiliary contact
- The OVR DIN rail SPDs utilize fast acting metal oxide varistor (MOV) technology H to limit overvoltage to values compatible with the sensitive equipment connected to the network
OVRT23N40550PTSU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2227001Part Number #OVRT23N40550PTSUUNSPSC39121610UPC03660308518743
