Part Number # OVRT240150CU
SKU # 2280953
Image Disclaimers Message
Brand: ABB
OVRT240150CU

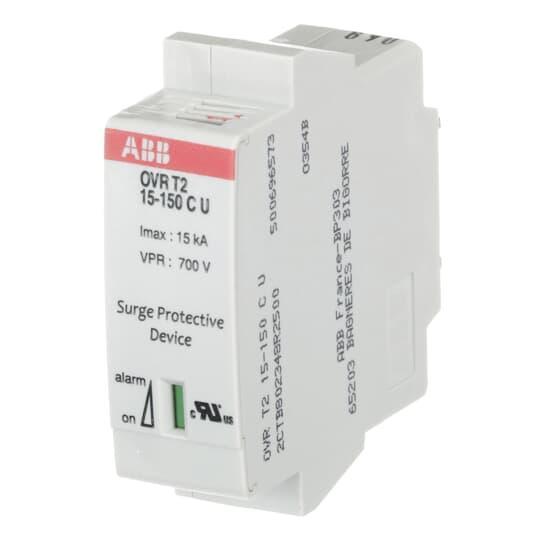

ABB OVRT240150CU Surge Protector
Part Number # OVRT240150CU
SKU # 2280953
$85.21 / Each
Typical price:$101.95 / Each
ABB OVRT240150CU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT240150CU |
| SKU #: | 2280953 |
| Dimensions: | 96 mm H x 17.8 mm W x 64.8 mm D |
| Electrical Ratings: | <0.1 mA, 150/175 V AC, <0.1 mA, 150/175 VAC |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operating Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Indicator Type: | State/Remote |
| Number of Poles: | 1 |
| Peak Surge Current: | 40, 40 kA |
| Response Time: | <25, <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Type: | Type 2 |
| Color: | Light gray |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518781 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$85.21 / Each
Typical price:$101.95 / Each
Quantity:
- ABB Surge Protector, Type 2, Series: OVR, <0.1 mA, 150/175 V AC, 50/60 Hz, 1 Pole, 200 kA Short Circuit Current Rating, 40 kA Peak Surge, 20 kA Nominal Discharge, <25 ns Response, State/Remote Indicator, Environmental Conditions: -40 to 176 deg F Operating Temperature, NEMA 1, DIN Rail Mount, Light Gray, 96 mm H x 17.8 mm W x 64.8 mm D
OVRT240150CU Item Features
- OVR surge protection device replacement cartridge to be used with OVR23N40150PTSU, 40 kA, 175 V
OVRT240150CU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2280953Part Number #OVRT240150CUUNSPSC39121610UPC03660308518781
