Part Number # OVRT240660PTSU
SKU # 2220708
Image Disclaimers Message
OVRT240660PTSU

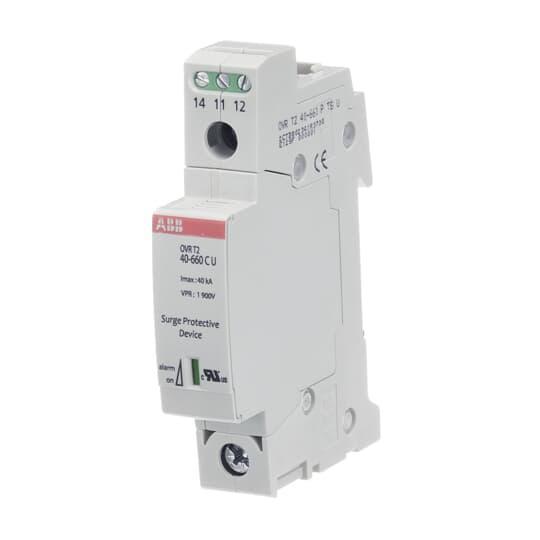

ABB OVRT240660PTSU Surge Protector
Part Number # OVRT240660PTSU
SKU # 2220708
$234.37 / Each
Typical price:$280.41 / Each
ABB OVRT240660PTSU Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | OVRT240660PTSU |
| SKU #: | 2220708 |
| Dimensions: | 96 mm H x 17.8 mm W x 64.8 mm D |
| Electrical Ratings: | <0.1 mA, 660 V AC, <0.1 mA, 660 VAC |
| Enclosure Type: | NEMA 1 |
| Environmental Conditions: | -40 to 176 deg F Operating Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Indicator Type: | State/Remote |
| Number of Poles: | 1 |
| Peak Surge Current: | 40, 40 kA |
| Response Time: | <25, <25 ns |
| Series: | OVR |
| Short Circuit Current Rating (kA): | 200, 200 kA |
| Type: | Type 2 Pluggable |
| Color: | Light gray |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121610 |
| UPC: | 03660308518576 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$234.37 / Each
Typical price:$280.41 / Each
Quantity:
- ABB Surge Protector, Type 2 Pluggable, Series: OVR, <0.1 mA, 660 V AC, 50/60 Hz, 1 Pole, 200 kA Short Circuit Current Rating, 40 kA Peak Surge, 10 kA Nominal Discharge, <25 ns Response, State/Remote Indicator, Environmental Conditions: -40 to 176 deg F Operating Temperature, NEMA 1, DIN Rail Mount, Light Gray, 96 mm H x 17.8 mm W x 64.8 mm D
OVRT240660PTSU Application
For protecting valuable equipment against transient surges and to help keep operations up and runningOVRT240660PTSU Item Features
- Fast acting metal oxide varistor (MOV) technology limits overvoltage to values compatible with the sensitive equipment connected to the network
- 1-pole OVR DIN rail surge protection device with a surge capacity of 40 kA and maximum voltage of 320 VAC
OVRT240660PTSU Standards
RoHs, CSA, cUL, CE, GOSTSKU #2220708Part Number #OVRT240660PTSUUNSPSC39121610UPC03660308518576
