Part Number # PSE85-600-70
SKU # 2217490
Image Disclaimers Message
PSE85-600-70

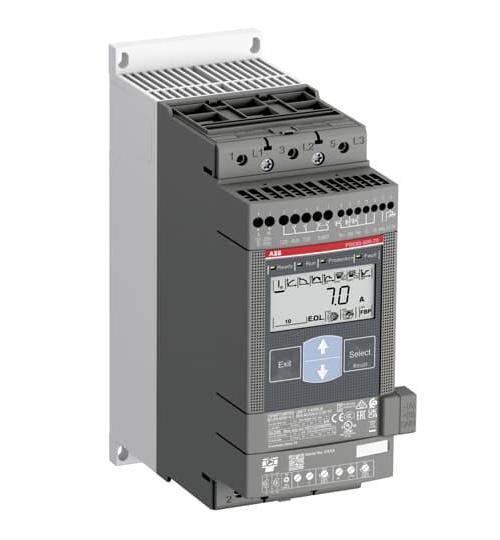

ABB PSE85-600-70 Soft Starter
Part Number # PSE85-600-70
SKU # 2217490
ABB PSE85-600-70 Key Features
Brand: | ABB |
---|---|
Part Number # : | PSE85-600-70 |
SKU #: | 2217490 |
Amperage Rating: | 85 A |
Coil Voltage: | 100 to 250 VAC |
Dimensions: | 185.5 mm L x 90 mm W x 185.5 mm H |
Enclosure Type: | NEMA 1/4X/12/IP00/IP20/IP66/Open |
Frequency Rating: | 50/60 Hz |
Full Load Current: | 80 A |
Motor Power: | 22/45/55 kW |
Operating Temperature: | -13 to 140 deg F |
Overload Relay: | Class 10 |
Phase: | 3 |
Series: | PSE |
Timing: | 1 to 30 s Start, 0 to 30 s Stop |
Type: | Efficient Range |
Connection type: | In-Line Screw |
Country of origin: | SE |
Manufacturer Name: | ABB |
UNSPSC: | 39121521 |
UPC: | 07320500400661 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB PSE85-600-70 Soft Starter
Brand: ABB
Part Number: PSE85-600-70
ABB Soft Starter, Efficient Range, Series: PSE, 208 to 600 VAC, 85 A, 50/60 Hz Frequency, 22/45/55 kW Motor, 100 to 250 VAC Coil, 1 to 30 s Start, 0 to 30 s Stop Timing, 3 ph, In-Line Screw Connection, Class 10 Overload Relay, 80 A Full Load, NEMA 1/4X/12/IP00/IP20/IP66/Open Enclosure, -13 to 140 deg F Operating, 185.5 mm L x 90 mm W x 185.5 mm H Dimensions
Additional Description: ABB -PSE85-600-70 SOFTSTARTER
Catalog Description: PSR softstarter - The compact range
The PSR softstarter range is a simple yet reliable starting solution that utilizes only the most basic of soft starting features: soft start and stop. It performs well in applications requiring many starts per hour and is perfect for installations where you need to save space.
Main benefits
* Small and compact starting solution
* Can perform many starts per hour
* Reduce energy loss at full speed with built-in bypass.
Main features
* Rated operational current: 3 to 105 A
* Operational voltage: 208â600 V AC
* Control supply voltage: 24 V AC/DC or 100â240 V AC.PSE85-600-70 Item Features
- Coated circuit boards for reliable operation in harsh environment
- Built-in by-pass on all sizes, saving energy and reducing installation time
- User friendly HMI with illuminated language neutral display and 4-button keypad
- Torque control for excellent control of pumps
- Motor overload protection with classes 10A, 10, 20 and 30
- Motor underload protection to detect pumps running dry
- Locked rotor protection, detecting jammed pumps
- Kick start to start jammed pumps or conveyor belts
- Analog output showing operational current, 4 to 20 mA
- Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
- 22 kW at 230 V, 45 kW at 400 V, 55 kW at 500 V 3 ph motor power rating
PSE85-600-70 Standards
UL 508|CSA C22.2 No. 14|CE Certified|cULus Listed|CCC Certified|EAC Certified|ANCE Certified|C-Tick Certified|ABS Approved|GL Approved|Lloyds Registered Approved|DNV Approved|CCS ApprovedSKU #2217490Part Number #PSE85-600-70UNSPSC39121521UPC07320500400661
