Part Number # PSR45-600-11
SKU # 2395997
Image Disclaimers Message
Brand: ABB
PSR45-600-11

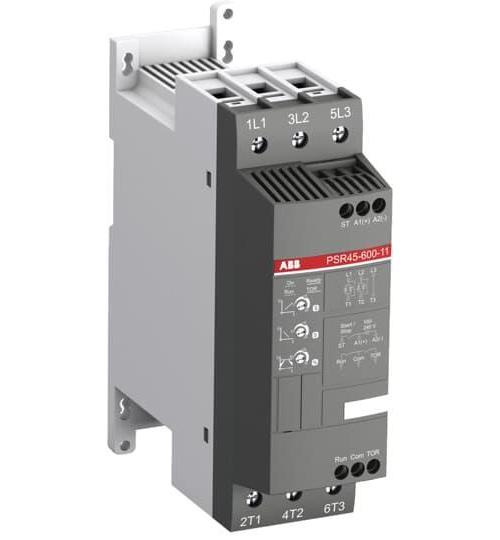

ABB PSR45-600-11 Soft Starter
Part Number # PSR45-600-11
SKU # 2395997
$852.93 / Each
ABB PSR45-600-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | PSR45-600-11 |
| SKU #: | 2395997 |
| Amperage Rating: | 45 A |
| Coil Voltage: | 24 V AC/DC, 24 VAC/VDC |
| Dimensions: | 6.02 in L x 2.13 in W x 7.36 in H |
| Enclosure Type: | IP10/20, IP10/IP20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 46.2 A |
| Motor Power: | 11/22/30 kW |
| Operating Temperature: | -25 to 60 deg C |
| Overload Relay: | Class 10 |
| Phase: | 2 |
| Series: | PSR |
| Timing: | 1 to 20 s Start, 0 to 20 s Stop |
| Type: | Compact Range |
| Connection type: | In-Line Screw |
| Country of origin: | CN |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121035 |
| UPC: | 00066234809157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$852.93 / Each
Quantity:
- ABB Soft Starter, Compact Range, Series: PSR, 208 to 600 V AC, 45 A, 50/60 Hz Frequency, 11/22/30 kW Motor, 24 VAC/VDC Coil, 1 to 20 s Start, 0 to 20 s Stop Timing, 2 ph, In-Line Screw Connection, Class 10 Overload Relay, 46.2 A Full Load, IP10/20 Enclosure, -25 to 60 deg C Operating, 6.02 in L x 2.13 in W x 7.36 in H Dimensions
PSR45-600-11 Item Features
- Built-in by-pass on all sizes, saving energy and reducing installation time
- Potentiometer settings
- Run signal relay on all devices
- TOR signal relay on PSR25 to PSR105
- DIN rail mounting on PSR3 to PSR45
- Connection kits for easy connection with ABB manual motor starters
- Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
- 11 kW at 230 V, 22 kW at 400 V, 30 kW at 500 V 2 ph motor power rating
PSR45-600-11 Standards
CE Certified|cULus Listed|CCC Certified|EAC Certified|C-Tick CertifiedSKU #2395997Part Number #PSR45-600-11UNSPSC39121035UPC00066234809157
