Part Number # PSR6-600-11
SKU # 2324551
Image provided may only be a representation of
final product and may include optional equipment
PSR6-600-11

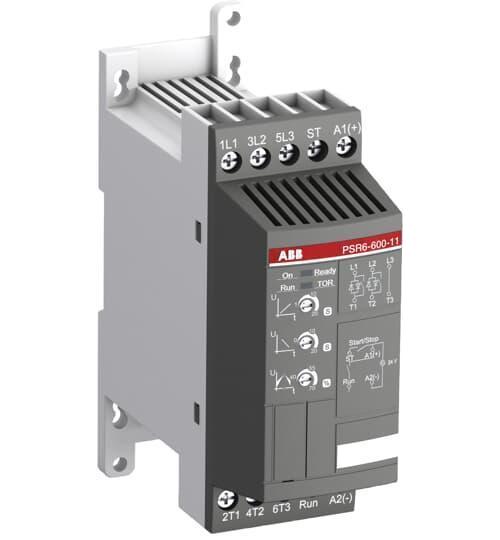

ABB PSR6-600-11 Soft Starter, 24 VAC/VDC V Coil, IP20 Enclosure
Part Number # PSR6-600-11
SKU # 2324551
ABB PSR6-600-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | PSR6-600-11 |
| SKU #: | 2324551 |
| Amperage Rating: | 6.8 A |
| Coil Voltage: | 24 V AC/DC, 24 VAC/VDC |
| Dimensions: | 114 mm L x 45 mm W x 140 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 1.5/3/4 kW |
| Operating Temperature: | -25 to 60 deg C |
| Phase: | 3 ph |
| Series: | PSR |
| Timing: | 1 to 10 s Start/0 to 20 s Stop |
| Connection type: | In-Line Screw |
| Country of origin: | CN |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121035 |
| UPC: | 00088861400094 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB PSR6-600-11 Soft Starter, 24 VAC/VDC V Coil, IP20 Enclosure
Brand: ABB
Part Number: PSR6-600-11
Softstarter for max 600V main voltage and 24V AC/DC control supply voltage
Additional Description: ABB -PSR6-600-11 (N) PSR SSTR,600V/24V AC/DC,6.1A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: PSR softstarter - The compact range
The PSR softstarter range is a simple yet reliable starting solution that utilizes only the most basic of soft starting features: soft start and stop. It performs well in applications requiring many starts per hour and is perfect for installations where you need to save space.
Main benefits
* Small and compact starting solution
* Can perform many starts per hour
* Reduce energy loss at full speed with built-in bypass.
Main features
* Rated operational current: 3 to 105 A
* Operational voltage: 208–600 V AC
* Control supply voltage: 24 V AC/DC or 100–240 V AC.PSR6-600-11 Item Features
- 1.5 kW at 230 VAC, 3 kW at 400 VAC, 4 kW at 500 VAC
SKU #2324551Part Number #PSR6-600-11UNSPSC39121035UPC00088861400094
