Part Number # PSR60-600-11
SKU # 2442707
PSR60-600-11
ABB PSR60-600-11 Compact Range Soft Starter, 24 VAC/VDC V Coil, IP10/IP20 Enclosure
Part Number # PSR60-600-11
SKU # 2442707
ABB PSR60-600-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | PSR60-600-11 |
| SKU #: | 2442707 |
| Amperage Rating: | 60 A |
| Coil Voltage: | 24 V AC/DC, 24 VAC/VDC |
| Dimensions: | 7.09 in L x 2.76 in W x 8.66 in H |
| Enclosure Type: | IP10/20, IP10/IP20 |
| Frequency Rating: | 50/60 Hz |
| Full Load Current: | 59.4 A |
| Motor Power: | 15/30/37 kW |
| Operating Temperature: | -25 to 60 deg C |
| Overload Relay: | Class 10 |
| Phase: | 2 |
| Series: | PSR |
| Timing: | 1 to 20 s Start, 0 to 20 s Stop |
| Type: | Compact Range |
| Connection type: | In-Line Screw |
| Country of origin: | CN |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121035 |
| UPC: | 00066234809159 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB PSR60-600-11 Compact Range Soft Starter, 24 VAC/VDC V Coil, IP10/IP20 Enclosure
Brand: ABB
Part Number: PSR60-600-11
Softstarter for max 600V main voltage and 24V AC/DC control supply voltage
Additional Description: ABB -PSR60-600-11 PSR SSTR,600V/24V AC/DC,59.4A
Catalog Description: The softstarter PSR60-600-11 has a rated maximum operational current of 60 A with an operating voltage span from 208...600 V AC. The rated control voltage is 24 V AC/DC. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and convey
PSR60-600-11 Item Features
- Built-in by-pass on all sizes, saving energy and reducing installation time
- Potentiometer settings
- Run signal relay on all devices
- TOR signal relay on PSR25 to PSR105
- DIN rail mounting on PSR3 to PSR45
- Connection kits for easy connection with ABB manual motor starters
- Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
- 15 kW at 230 V, 30 kW at 400 V, 37 kW at 500 V 2 ph motor power rating
PSR60-600-11 Standards
CE Certified|cULus Listed|CCC Certified|EAC Certified|C-Tick CertifiedSKU #2442707Part Number #PSR60-600-11UNSPSC39121035UPC00066234809159

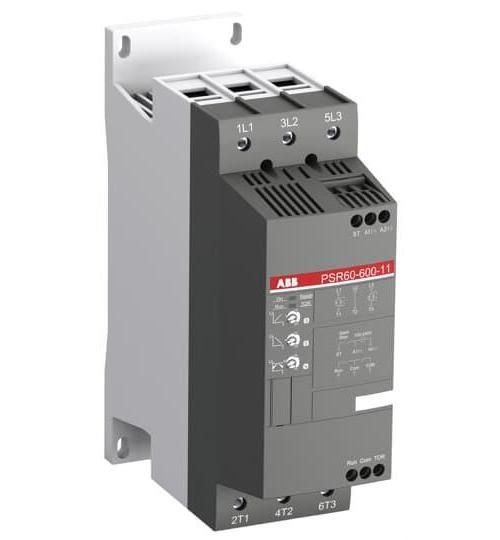

Image provided may only be a representation of final product and may include optional equipment
