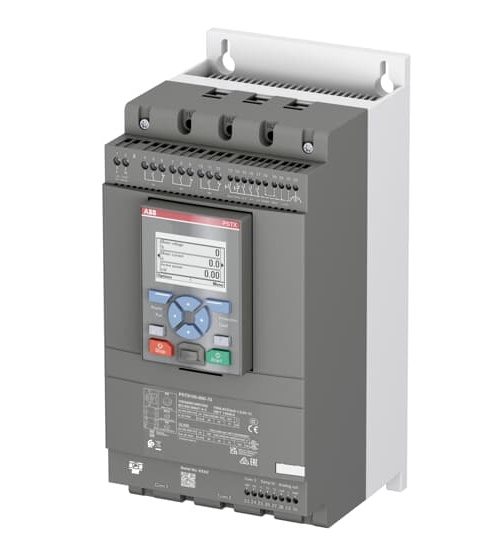

ABB PSTX105-600-70 Softstarter

Brand: ABB

Part Number: PSTX105-600-70

ABB, PSTX105-600-70, Series: PSTX, 208 to 600 V AC, 105 A, 50 to 60 Hz Frequency, 100 to 250 VAC Coil, 3 ph, In-Line Screw Connection, Built-In Electronic Overload Relay, NEMA 4X/IP66 Enclosure, Starting Modes: Start/Stop/Reset, -25 to 60 deg C Operating, 12.36 in H x 5.90 in W x 7.79 in D Dimensions

Additional Description: ABB -PSTX105-600-70 PSTX105, 600V, 100-250VAC

Catalog Description: The softstarter PSTX105-600-70 has a rated maximum operational current of 105 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...250 V AC at 50/60 Hz. PSTX features a three-phase control soft start and stop through a voltage or a torque ramp. It has built-in bypass for easy installation and energy saving. A RUN, TOR and Event signal is available from relay outputs in NO (normally open state). The PSTX has functions such as current limit, kickstart, analog output, EOL, motor heating and pump cleaning. PSTX also features features jog, braking, stand-still brake, diagnostics, sequence start and emergency/fire pump mode as standard.To interact with PSTX, it has a detachable full graphic display with IP66 and 4x outdoor rating. There are four ways to communicate with PSTX. It can be done by hardwire inputs Start/Stop/Reset of fault, and by three programmable digital inputs. Another popular option is the built-in Fieldbus communication Modbus RT
